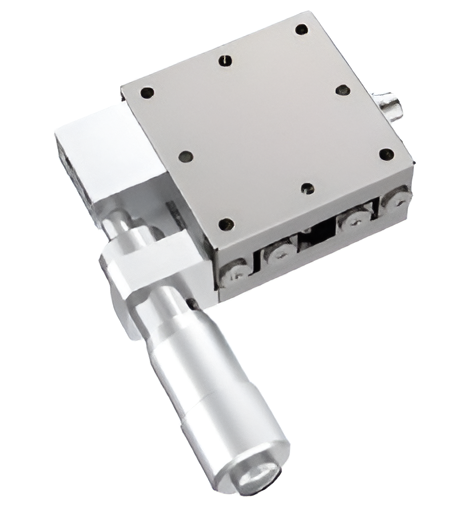

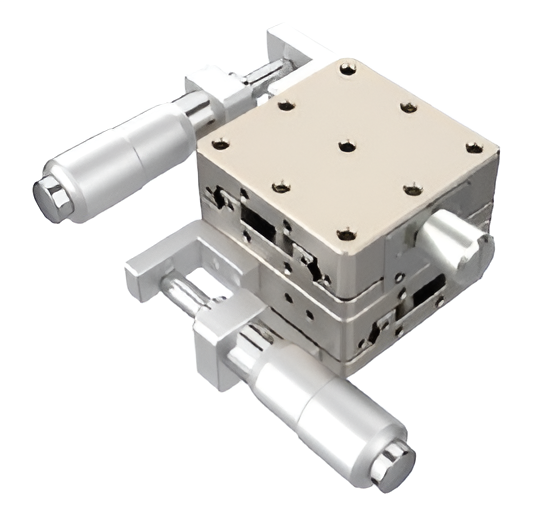

Standard X-axis Linear Ball Manual Translation Stage (MBX Series)

Standard X-axis Linear Ball Manual Translation Stage (MBX Series)

Category: PRECISION POSITIONING STAGE
Specifications
Standard X-axis Linear Ball Manual Translation Stage Supplier in Johor Standard X-axis Linear Ball Manual Translation Stage Supplier in Kuala Lumpur Standard X-axis Linear Ball Manual Translation Stage Supplier in Penang Standard X-axis Linear Ball Manual Translation Stage Supplier in Melaka Standard X-axis Linear Ball Manual Translation Stage Supplier Malaysia
Details



Model :

  • MBX25-C, MBX25-L, MBX25-R



  • MBXY25-C, MBXY25-L, MBXY25-R



  • MBX40-C, MBX40-R, MBX40-L



  • MBXY40-C, MBXY40-L, MBXY40-R




  • MBX60-C, MBX60-L, MBX60-R




  • MBXY60-C, MBXY60-L, MBXY60-R



  • MBX60-C-H, MBX60-L-H, MBX60-R-H




  • MBXY60-C-H, MBXY60-L-H, MBXY60-R-H



  • MBX80-C, MBX80-L, MBX80-R



  • MBXY80-C, MBXY80-L, MBXY80-R



  • MBX100-C, MBX100-L, MBX100-R




  • MBXY100-C, MBXY100-L, MBXY100-R



  • MSX60-L-S, MSX60-R-S



  • MBXY40-CB, MBXY40-LB, MBXY40-RB



  • MBXY60-CB, MBXY60-LB, MBXY60-RB




Features :

  1. The MBX series translation stages are economical manual translation stages.
  2. Mainly constructed of stainless steel, they come in sizes ranging from 25 to 100 mm and are nickel-plated for excellent rust resistance.
  3. The load capacity values ​​are for reference only. They are not suitable for use under conditions of vibration, high loads, or other loads.
  4. Instructions: Loosen the locking knob, adjust the drive mechanism (differential head/feed screw) to the desired position, and then tighten the locking knob.

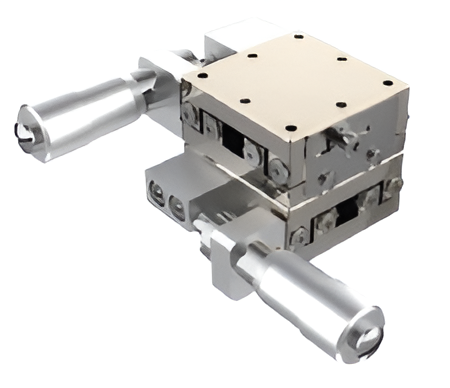

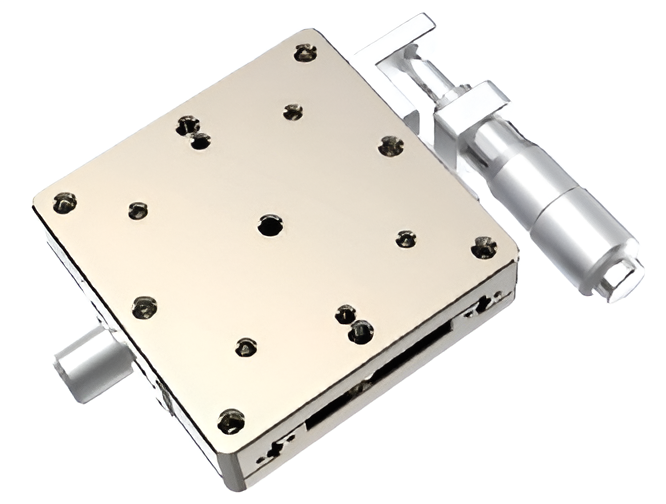

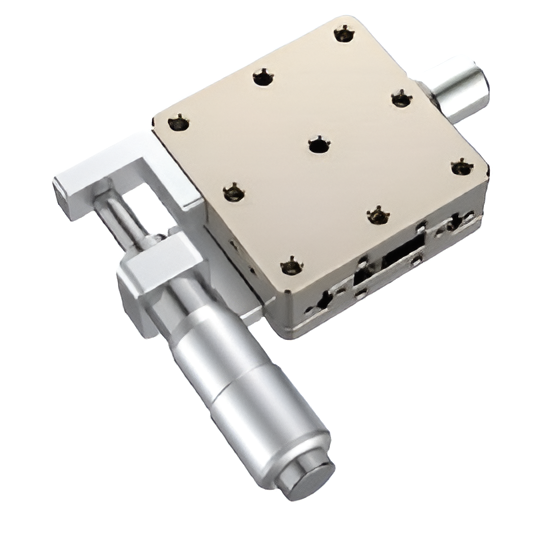

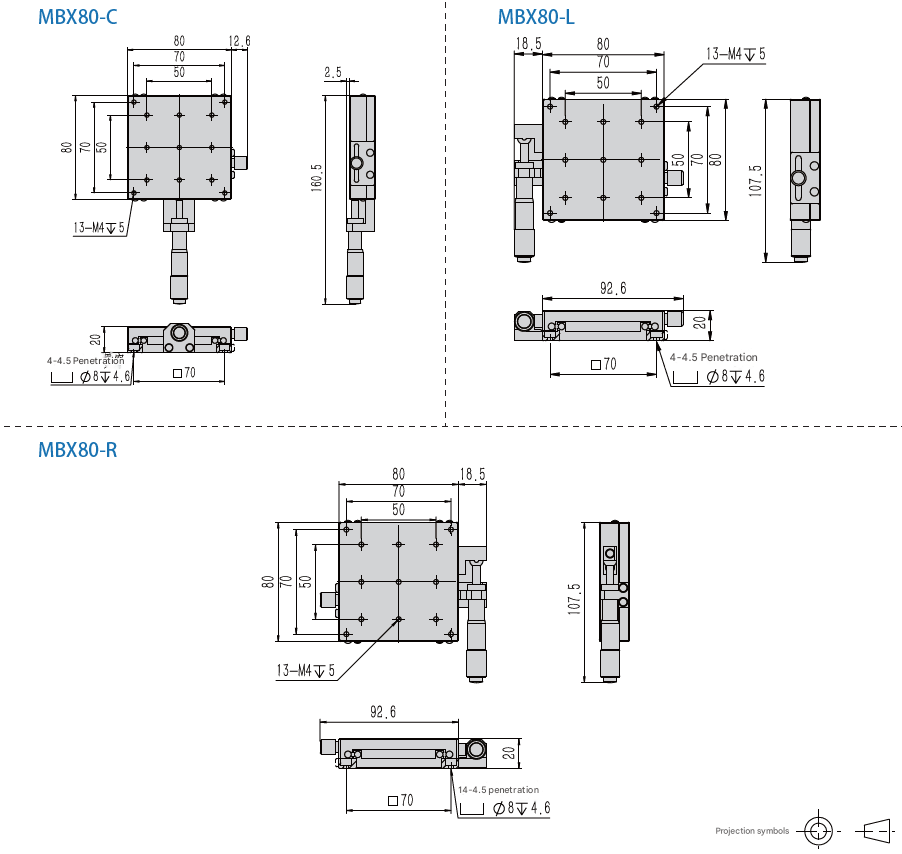

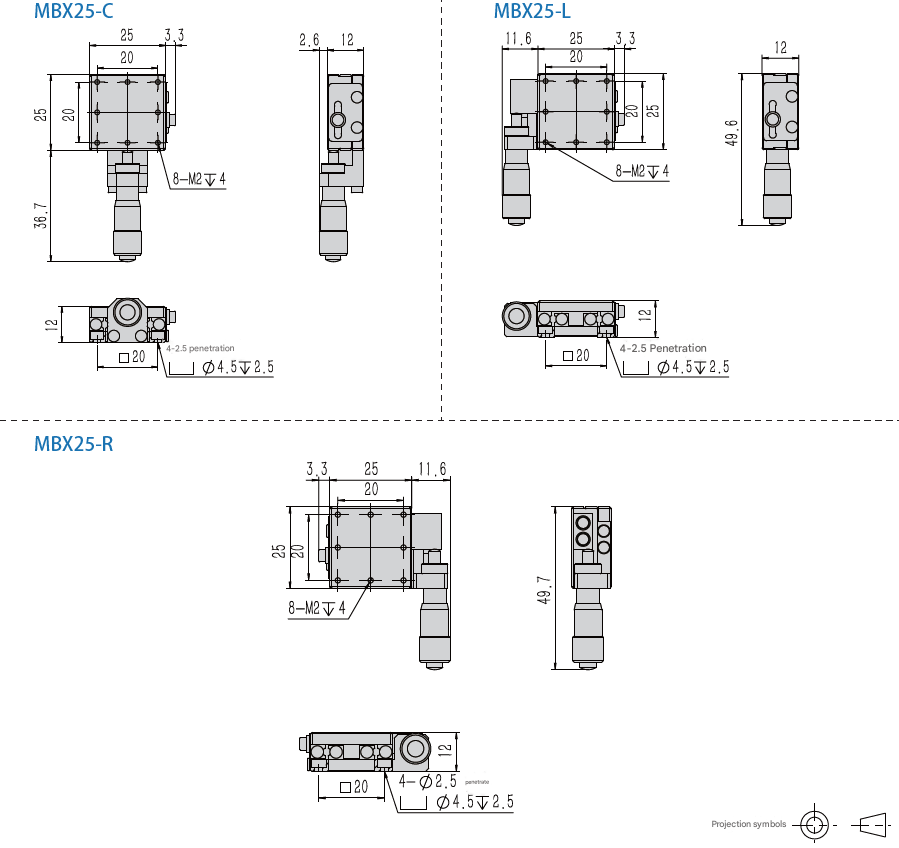

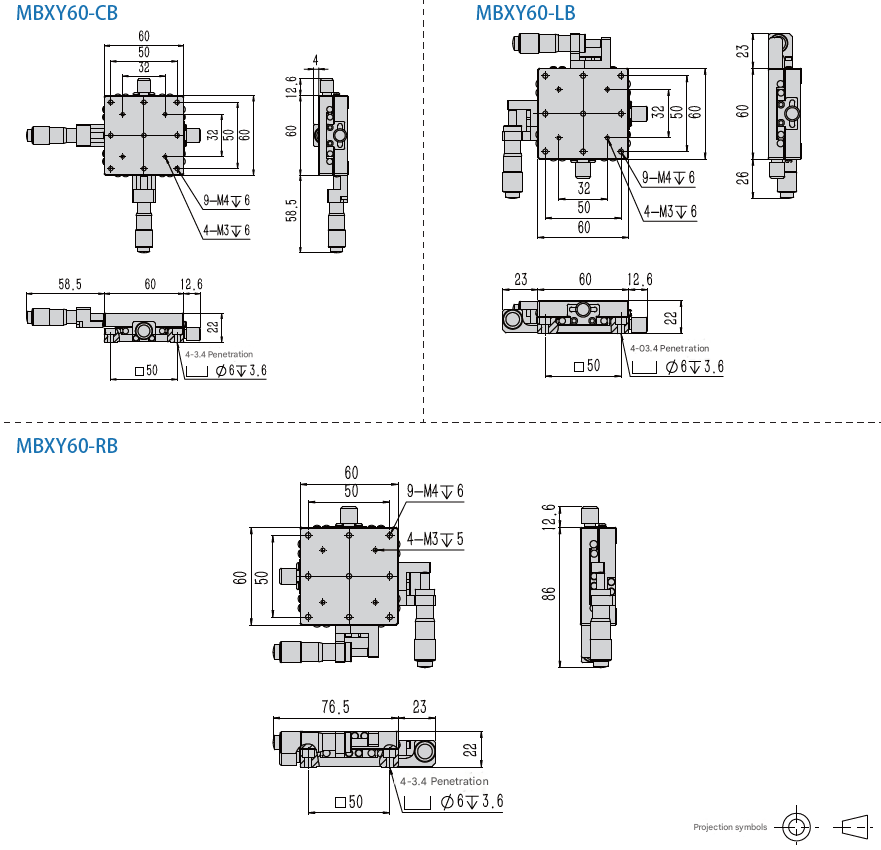

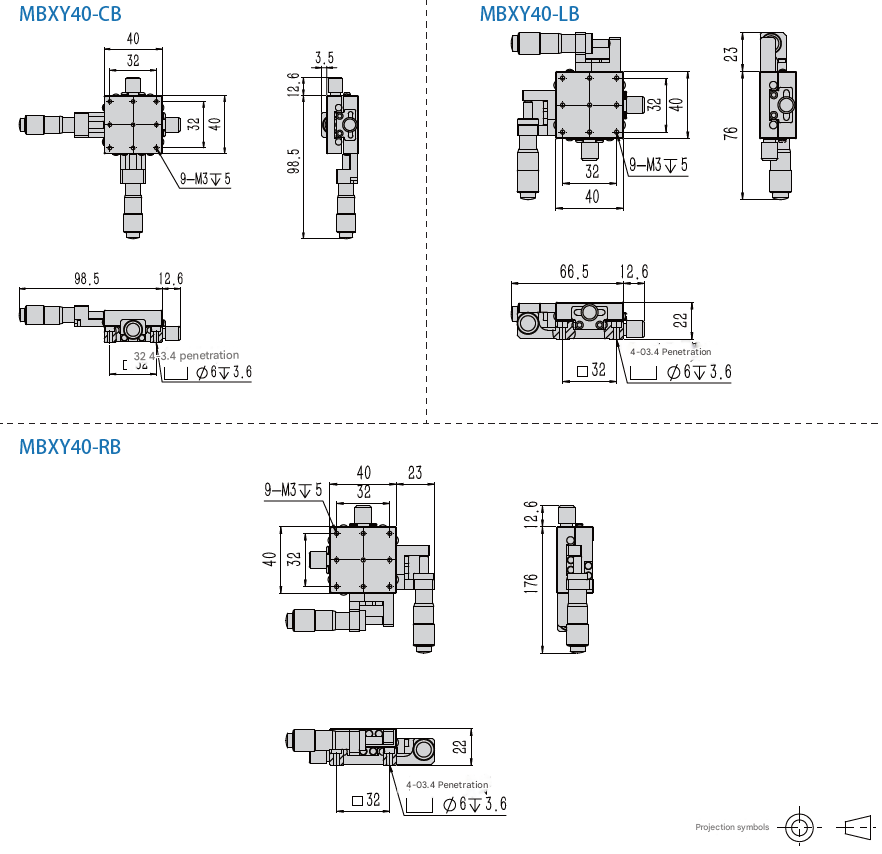

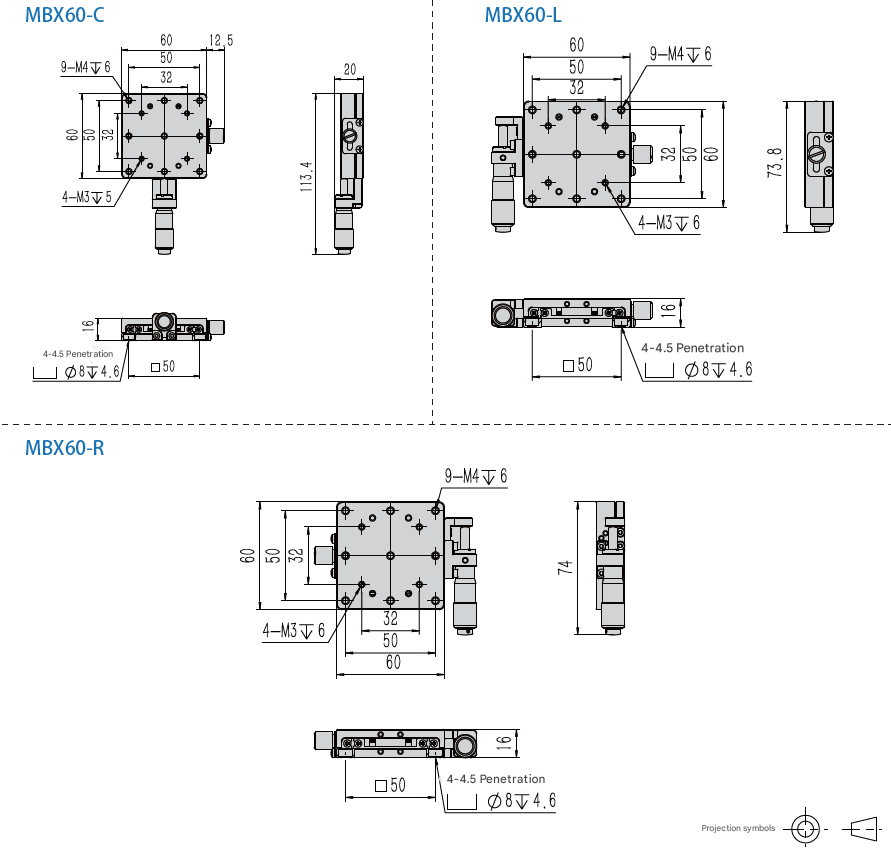

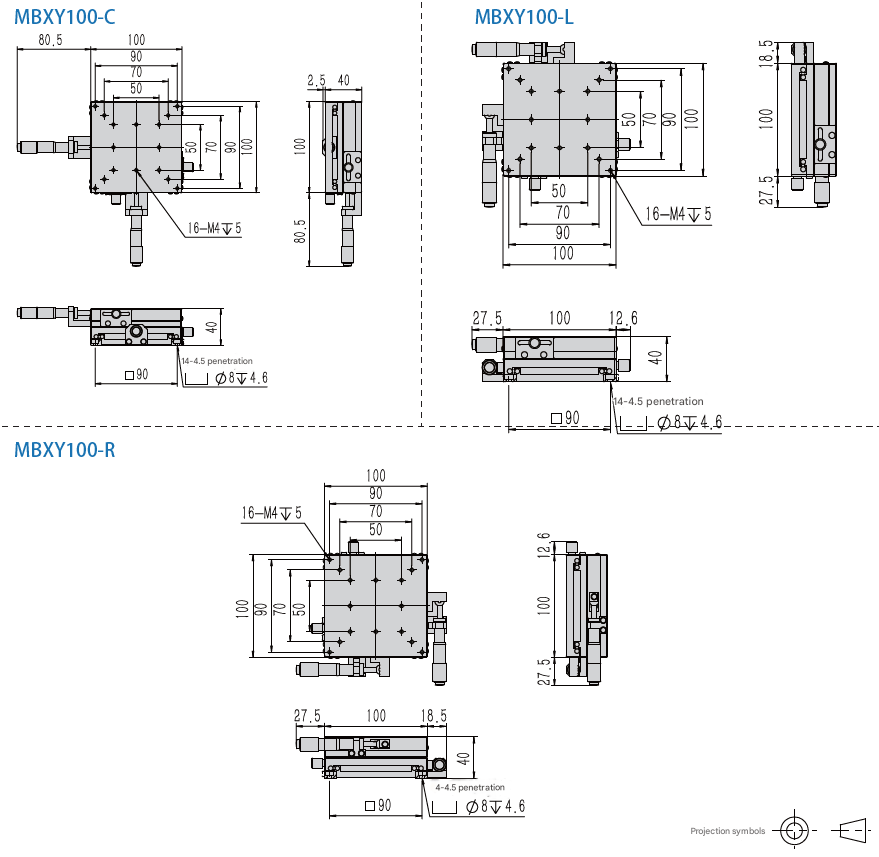

Dimension :

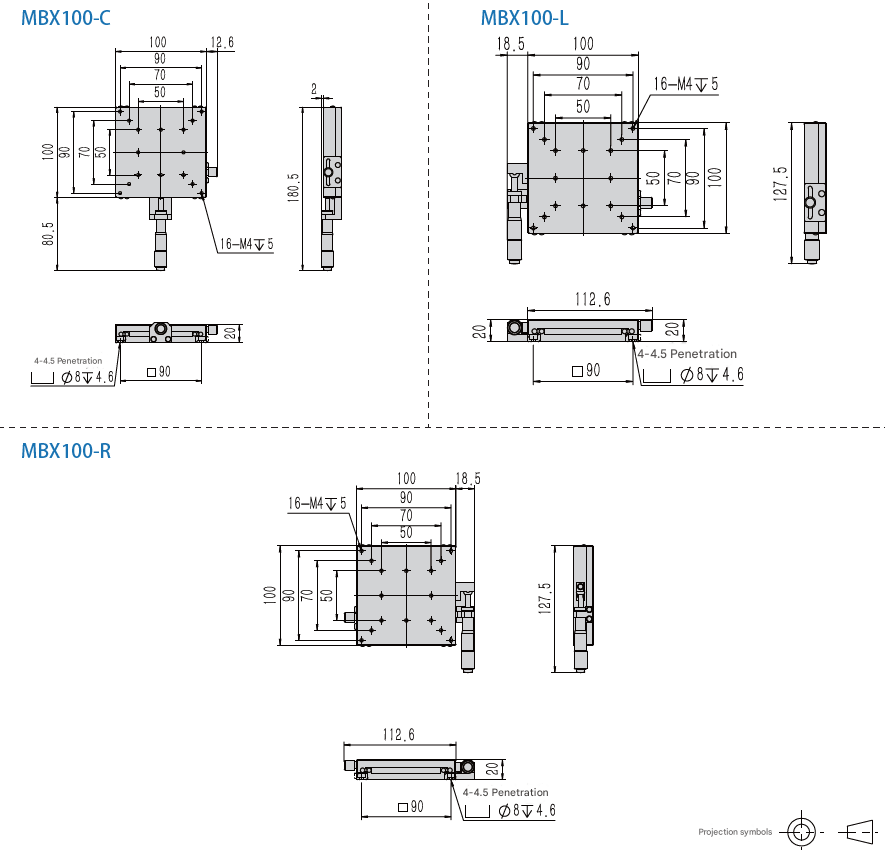

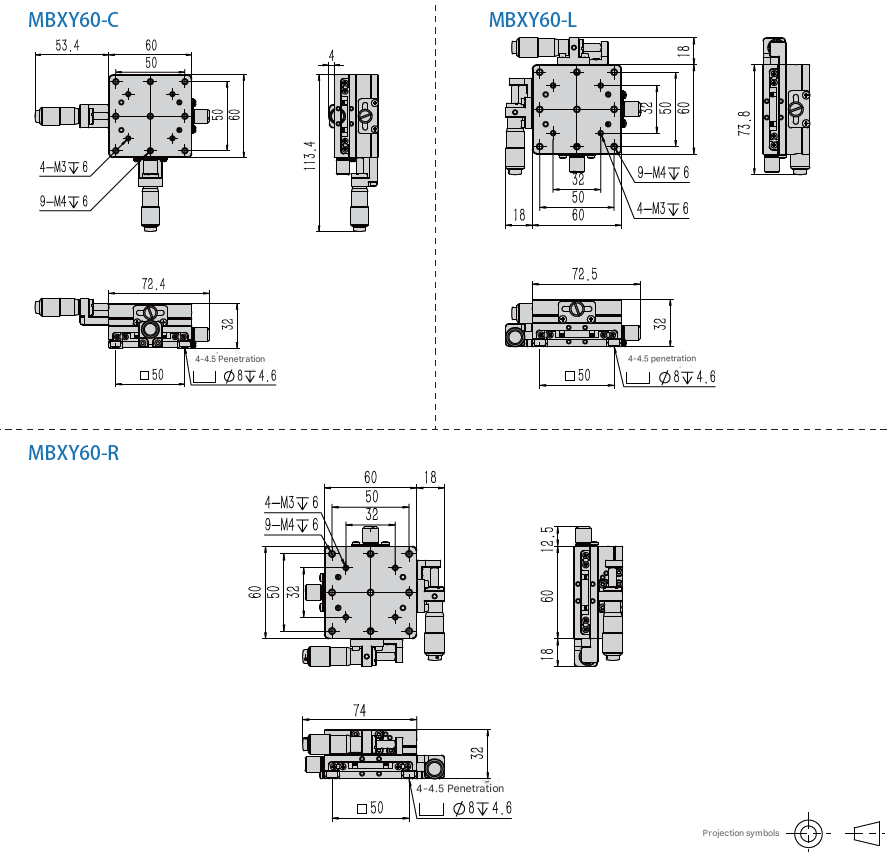

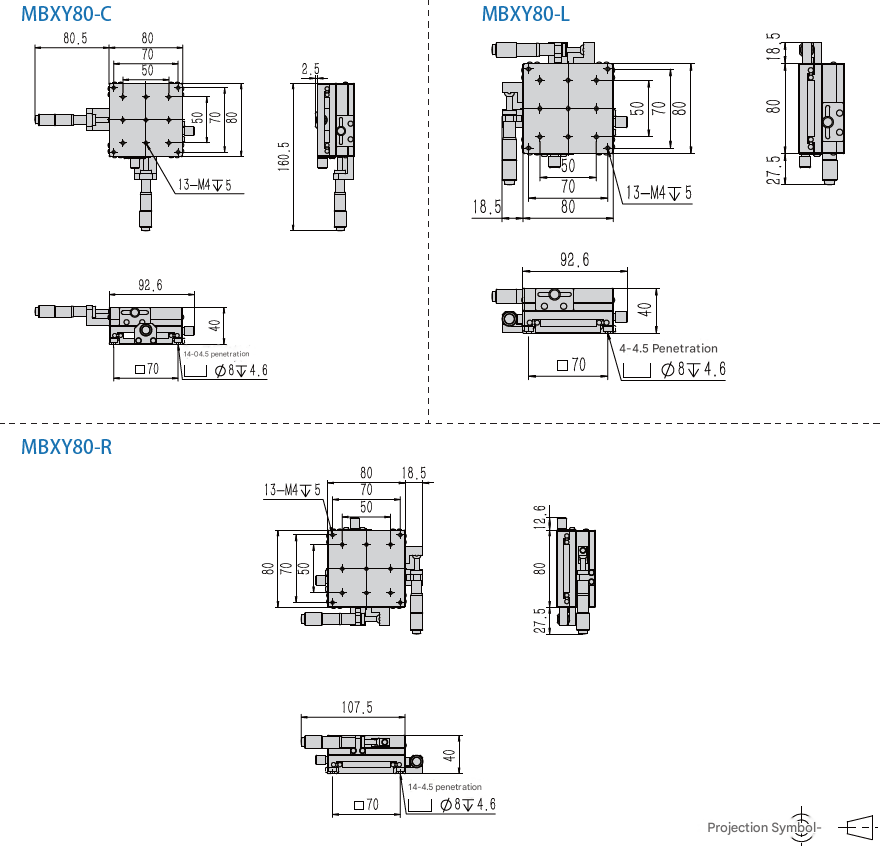

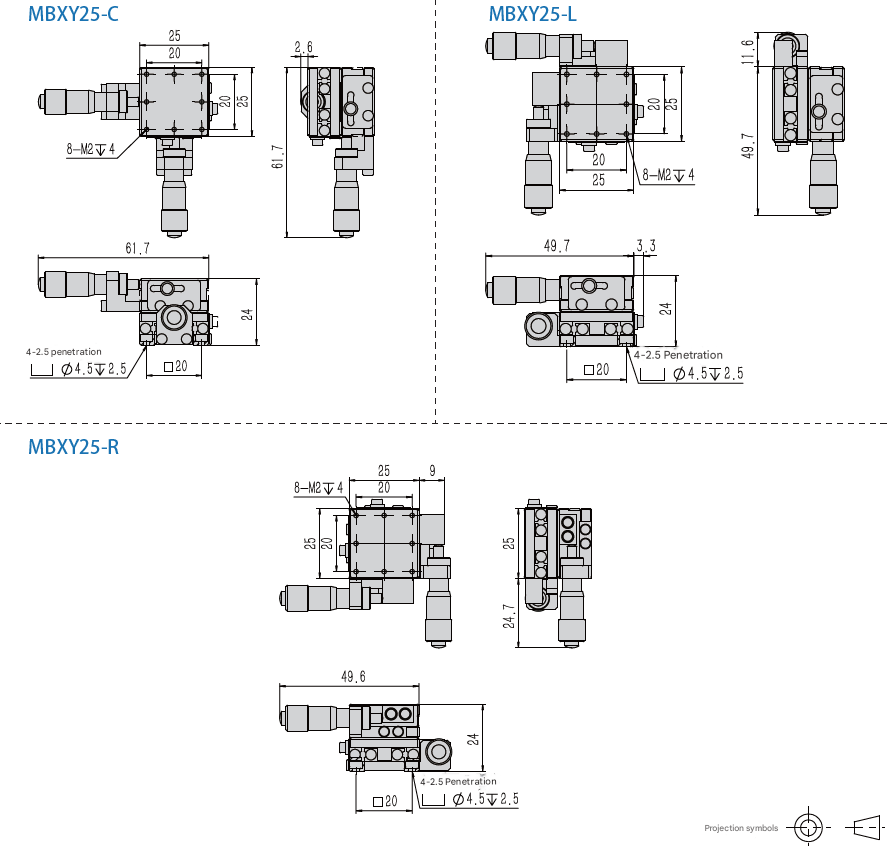

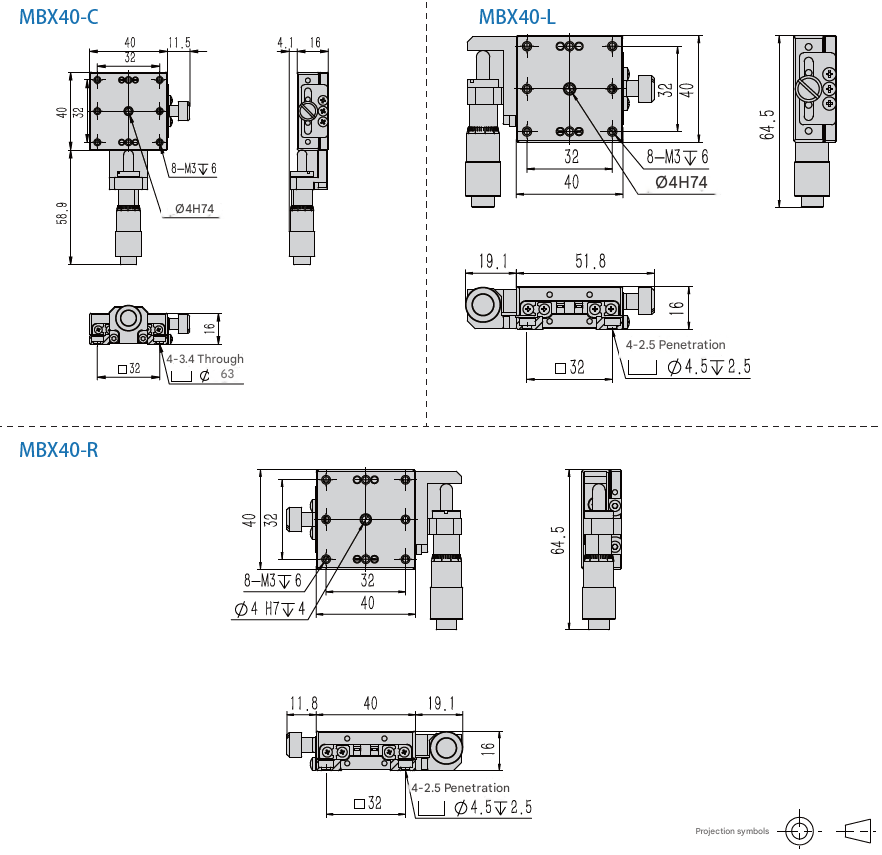

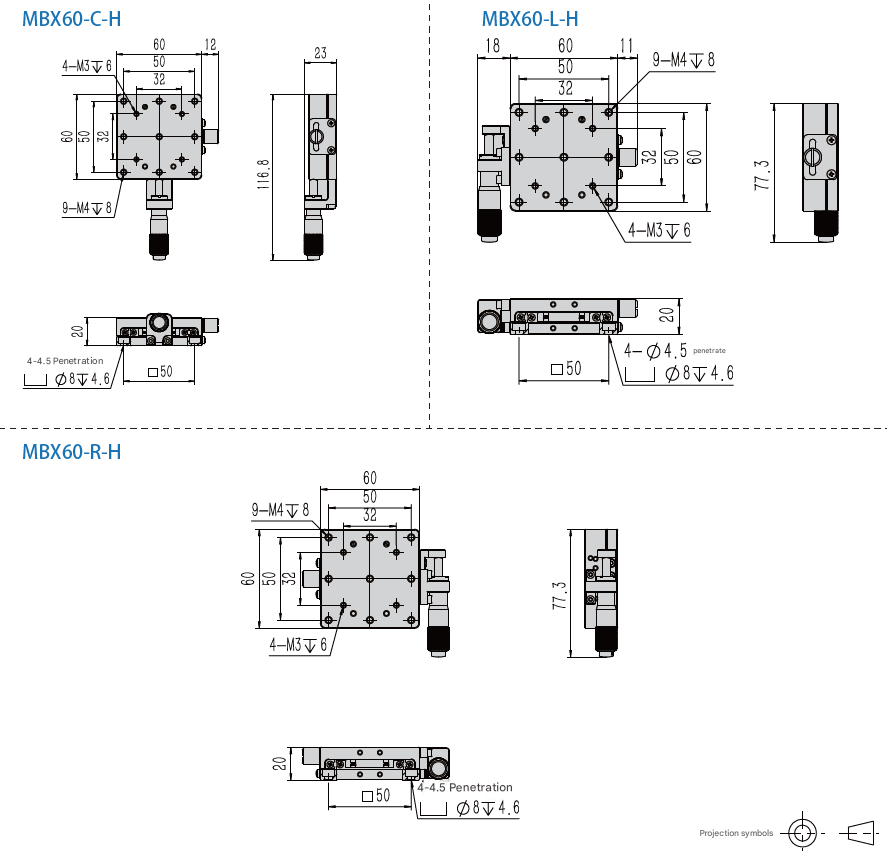

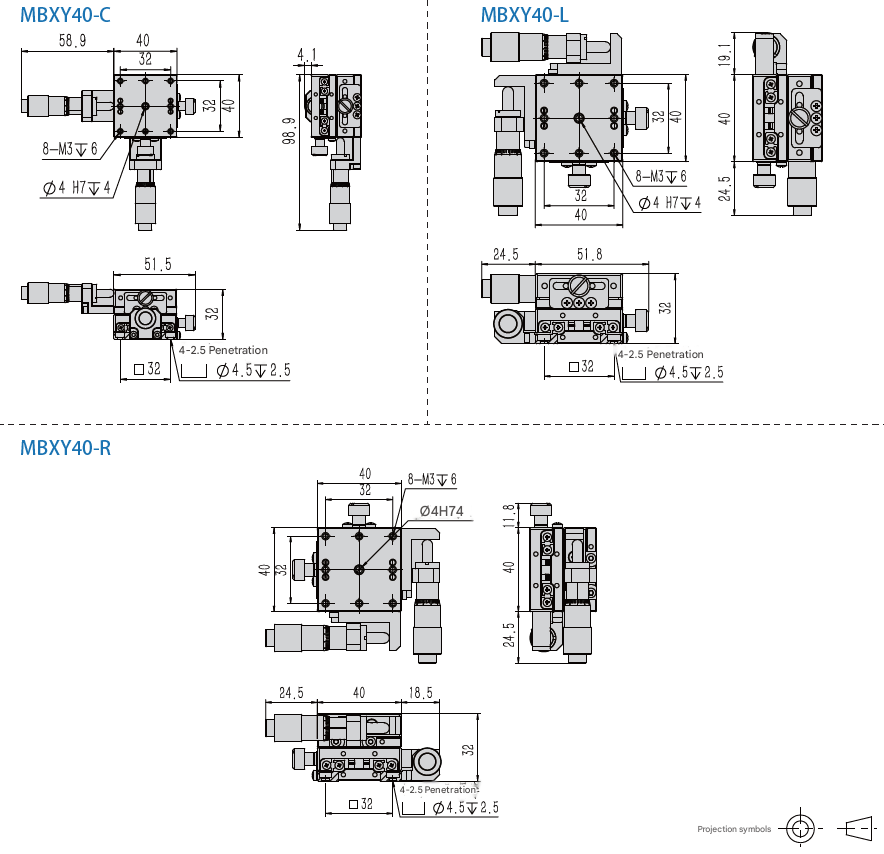

  • MBX25-C, MBX25-L, MBX25-R


  • MBXY25-C, MBXY25-L, MBXY25-R




  • MBX40-C, MBX40-R, MBX40-L



  • MBXY40-C, MBXY40-L, MBXY40-R



  • MBX60-C, MBX60-L, MBX60-R



  • MBXY60-C, MBXY60-L, MBXY60-R




  • MBX60-C-H, MBX60-L-H, MBX60-R-H



  • MBXY60-C-H, MBXY60-L-H, MBXY60-R-H




  • MBX80-C, MBX80-L, MBX80-R


  • MBXY80-C, MBXY80-L, MBXY80-R



  • MBX100-C, MBX100-L, MBX100-R



  • MBXY100-C, MBXY100-L, MBXY100-R

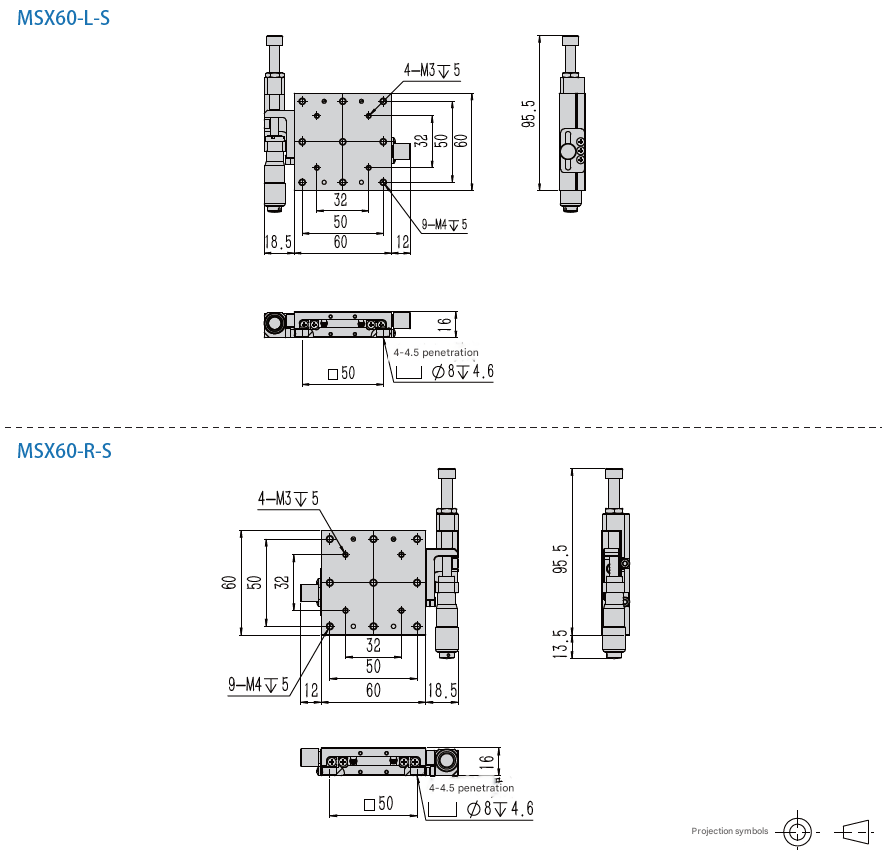

  • MSX60-L-S, MSX60-R-S




  • MBXY40-CB, MBXY40-LB, MBXY40-RB



  • MBXY60-CB, MBXY60-LB, MBXY60-RB





Specifications :

  • MBX25-C, MBX25-L, MBX25-R
Model MBX25-C MBX25-L MBX25-R
Moving direction X-axis
Main body material SUS440C
Countertop size 25mm×25mm
Driver mode Differential head
Countertop thickness 12mm
Journey ±3mm
Load 39. 2N (4kgf)
Body weight 0.07kg
Minimum read volume per centricard 0.01mm
Moving parallel ≤0.005mm /6mm
Parallelism 0.01mm



  • MBXY25-C, MBXY25-L, MBXY25-R
Model MBXY25-C MBXY25-L MBXY25-R
Moving direction XY axis
Main body material SUS440C
Countertop size 25mm×25mm
Driver mode Differential head
Countertop thickness 24mm
Journey ±3mm
Load 39. 2N (4kgf)
Body weight 0.07kg
Minimum read volume per centricard 0.01mm
Moving parallel ≤0.005mm /6mm
Parallelism 0.02mm



  • MBX40-C, MBX40-R, MBX40-L
Model MBX40-C MBX40-L MBX40-R
Moving direction X-axis
Main body material SUS440C
Countertop size 40mm×40mm
Driver mode Differential head
Countertop thickness 16mm
Stroke ±6.5mm
Load 98N (10kgf)
Body weight 0.07kg
Minimum read volume per centricard 0.01mm
Moving parallel <0.005mm /13mm
Parallelism 0.02mm



  • MBXY40-C, MBXY40-L, MBXY40-R
Model MBXY40-C MBXY40-L MBXY40-R
Moving direction XY axis
Main body material SUS440C
Countertop size 40mm×40mm
Driver mode Differential head
Countertop thickness 32mm
Stroke ±6.5mm
Load 98N (10kgf)
Body weight 0.46kg
Minimum read volume of centigrams 0.01mm
Moving parallelism <0.005mm /13mm
Parallelism 0.04mm



  • MBX60-C, MBX60-L, MBX60-R
Model MBX60-C MBX60-L MBX60-R
Moving direction X-axis
Main body material SUS440C
Table size 60mm×60mm
Driver mode Differential head
Countertop size 65mm×33mm
Countertop thickness 16mm
Stroke ±6.5mm
Load 196N (20kgf)
Body weight 0.4kg
Minimum read volume of centigrams 0.01mm
Moving parallelism <0.005mm /13mm
Parallelism 0.02mm



  • MBXY60-C, MBXY60-L, MBXY60-R
Model MBXY60-C MBXY60-L MBXY60-R
Moving direction XY axis
Main body material SUS440C
Countertop size 60mm×60mm
Driver mode Differential head
Countertop thickness 32mm
Stroke ±6.5mm
Load 196N (20kgf)
Body weight 0.8kg
Minimum read volume of centigrams 0.01mm
Moving parallelism <0.005mm /13mm
Parallelism 0.04mm



  • MBX60-C-H, MBX60-L-H, MBX60-R-H
Model MBX60-C-H MBX60-L-H MBX60-R-H
Moving direction X-axis
Main body material SUS440C
Countertop size 60mm×60mm
Driver mode Differential head
Countertop thickness 20mm
Stroke ±6.5mm
Load 196N (20kgf)
Body weight 0.52kg
Minimum read volume of centigrams 0.02mm
Moving parallelism <0.005mm /13mm
Parallelism 0.04mm

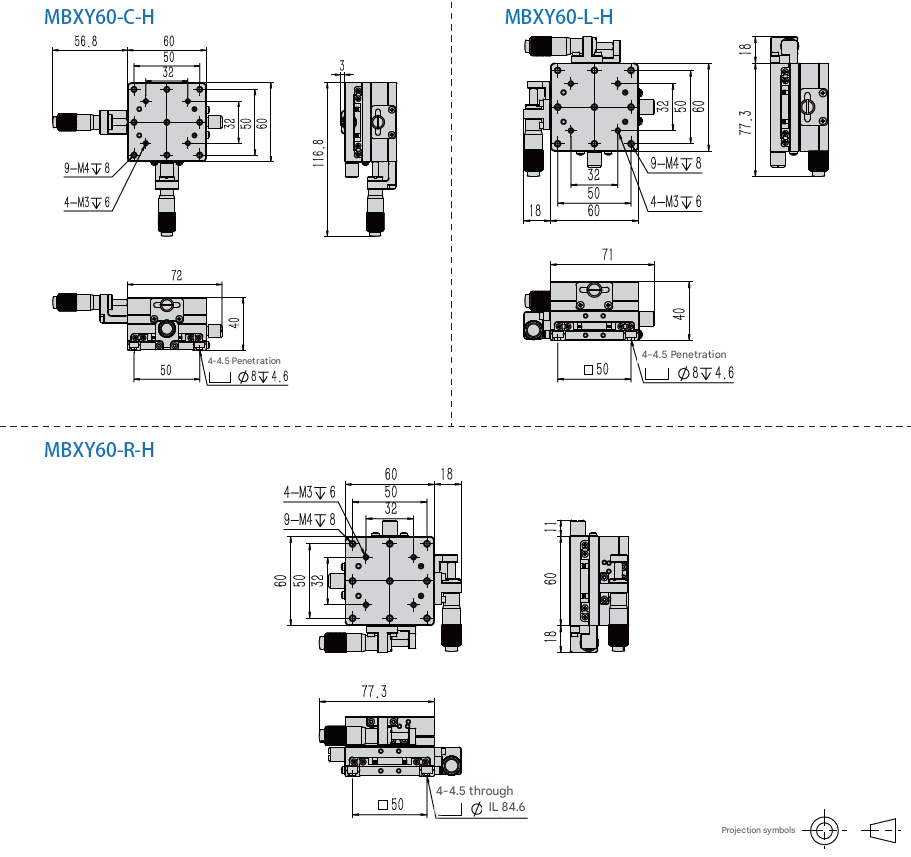

  • MBXY60-C-H, MBXY60-L-H, MBXY60-R-H
Model MBXY60-C-H MBXY60-L-H MBXY60-R-H
Moving direction XY axis
Main body material SUS440C
Countertop size 60mm×60mm
Driver mode Differential head
Countertop thickness 40mm
Stroke ±6.5mm
Load 196N (20kgf)
Body weight 1.04kg
Minimum read volume of centigrams 0.01mm
Moving parallelism <0.005mm /13mm
Parallelism 0.04mm



  • MBX80-C, MBX80-L, MBX80-R
Model MBX80-C MBX80-L MBX80-R
Moving direction X-axis
Main body material SUS440C
Countertop size 80mm×80mm
Driver mode Differential head
Countertop thickness 20mm
Stroke ±12.5mm
Load 264. 6N (27kgf)
Body weight 0.9kg
Minimum read volume of centigrams 0.01mm
Moving parallelism <0.01mm /25mm
Parallelism 0.03mm



  • MBXY80-C, MBXY80-L, MBXY80-R
Model MBXY80-C MBXY80-L MBXY80-R
Moving direction XY axis
Main body material SUS440C
Driver mode Differential head
Countertop size 80mm×80mm
Countertop thickness 40mm
Stroke ±12.5mm
Load 264. 6N (27kgf)
Body weight 1.8kg
Minimum read volume of centigrams 0.01mm
Moving parallelism <0.01mm /25mm
Parallelism 0.06mm



  • MBX100-C, MBX100-L, MBX100-R
Model MBX100-C MBX100-L MBX100-R
Moving direction X-axis
Main body material SUS440C
Driver mode Differential head
Countertop size 100mm×100mm
Countertop thickness 20mm
Stroke ±15mm
Load 338.8N (34kgf)
Body weight 1.3kg
Minimum read volume of centigrams 0.01mm
Moving parallelism <0.01mm /25mm
Parallelism 0.03mm



  • MBXY100-C, MBXY100-L, MBXY100-R
Model MBXY100-C MBXY100-L MBXY100-R
Moving direction XY axis
Main body material SUS440C
Driver mode Differential head
Countertop size 100mm×100mm
Countertop thickness 40mm
Stroke ±15mm
Load 338.8N (34kgf)
Body weight 2. 6kg
Minimum read volume of centigrams 0.01mm
Moving parallelism <0.01mm /25mm
Parallelism 0.06mm


​​​​​​​
  • MSX60-L-S, MSX60-R-S
Model MSX60-L-S MSX60-R-S
Moving direction X-axis
Main body material SUS440C
Driver mode Differential head
Countertop size 60mm×60mm
Countertop thickness 16mm
Stroke ±6.5mm
Load 3kgf
Body weight 0.4kg
Minimum read volume of centigrams 0.01mm
Moving parallelism 7um
Parallelism 15um



  • MBXY40-CB, MBXY40-LB, MBXY40-RB​​​​​​​
Model MBXY40-CB MBXY40-LB MBXY40-RB
Moving direction XY axis
Main body material SUS440C
Driver mode Differential head
Countertop size 40 mm × 40 mm
Countertop thickness 22 mm
Stroke ±6.5 mm
Load 10 kgf
Body weight 0.34 kg
Minimum read volume of centigrams 0.01 mm
Moving parallelism ≤0.005mm /13mm
Parallelism 0.04 mm



  • MBXY60-CB, MBXY60-LB, MBXY60-RB
Model MBXY60-CB MBXY60-LB MBXY60-RB
Moving direction XY axis
Main body material SUS440C
Driver mode Differential head
Countertop size 60mm×60mm
Countertop thickness 22 mm
Stroke ±6.5 mm
Load 10 kgf
Body weight 0.64 kg
Minimum read volume of centigrams 0.01 mm
Moving parallelism ≤0.005mm /13mm
Parallelism 0.04 mm

​​​​​​​


View more about Standard X-axis Linear Ball Manual Translation Stage (MBX Series) on main site
