Details

---

Model :

• MCZ40-C, MCZ60-C, MCZ80-C






---

Features :

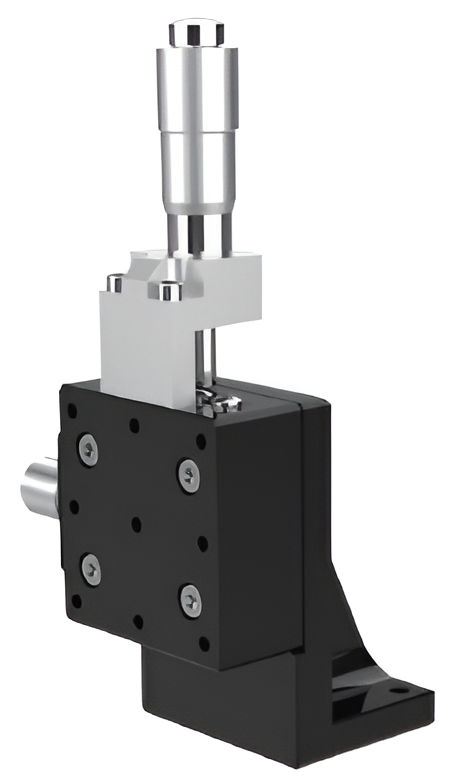

1. The MCZ series translation stages are composed of an MX translation stage and an L-shaped adapter plate, designed for vertical installation.
2. Mainly constructed of aluminum alloy, the stage dimensions range from 40 to 125 mm.
3. The surface is black anodized, effectively preventing light reflection and providing excellent rust resistance.​​​​​​​



---

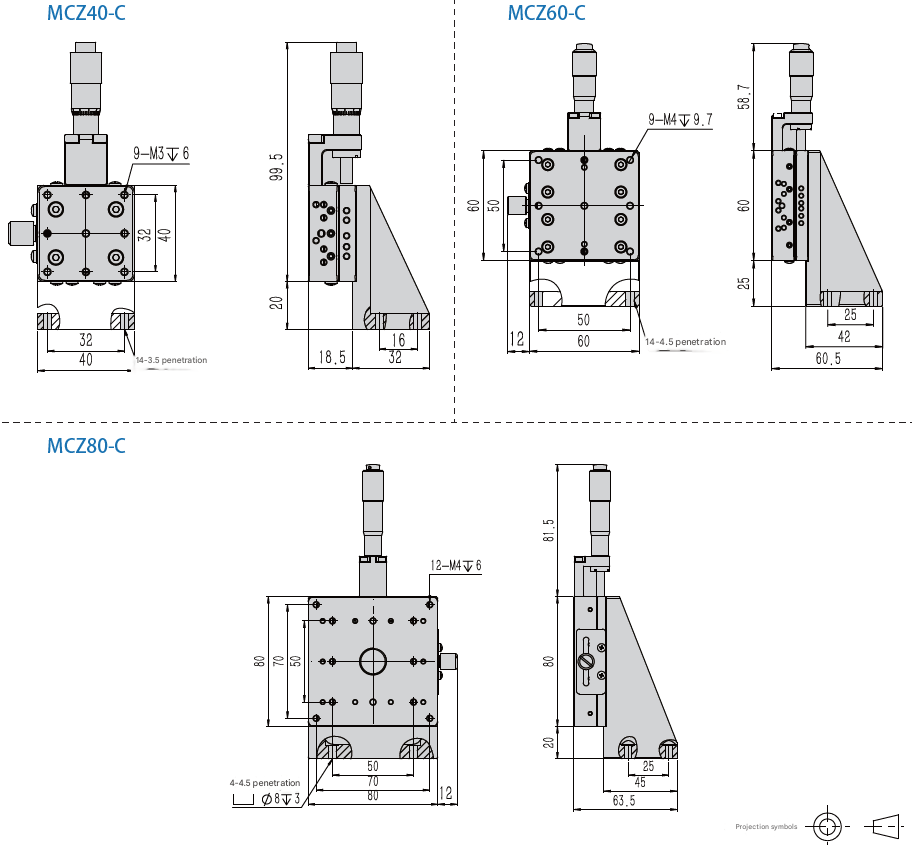

Dimension :



• MCZ40-C, MCZ60-C, MCZ80-C



---

Specifications :


• MCZ40-C, MCZ60-C, MCZ80-C

​​​​​​​

Model	MCZ40-C	MCZ60-C	MCZ80-C
Moving direction	Z axis (vertical lifting)
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	40 mm × 40 mm	60 mm × 60 mm	80 mm × 80 mm
Journey	±6.5 mm		±12.5mm
Load	19. 6N (2kgf)	39. 2N (4kgf)
Minimum read volume per centicard	0.01 mm
Straighteness	≤0.01mm/13mm		≤0.02mm/25mm
Body weight	0.45kg	0.87kg	0.22kg

---
