Details

---

Model :

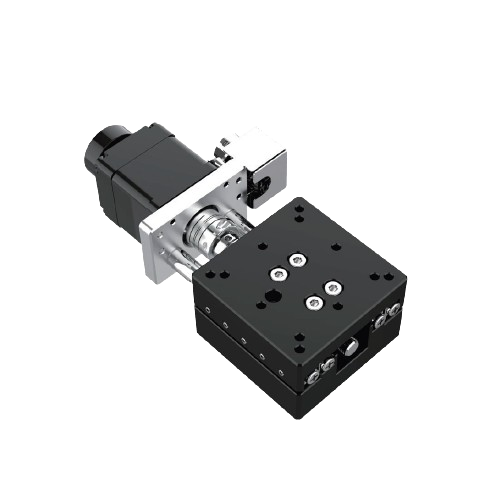

• LAX4715-L, LAZ4715-L, LAXY4715-L

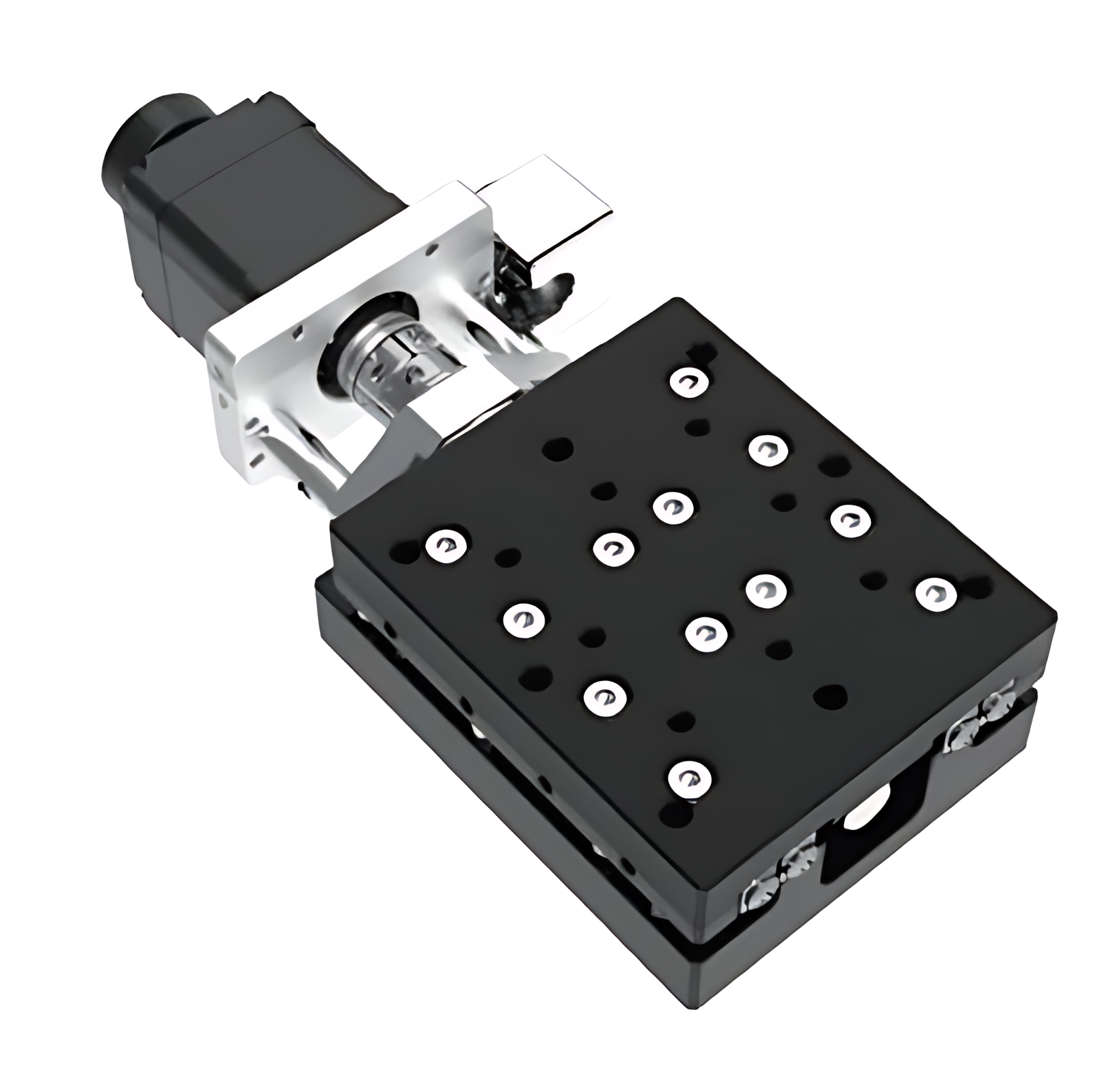

• LAX620-L, LAZ620-L, LAXY620-L

• LAX630-L, LAZ630-L, LAXY630-L

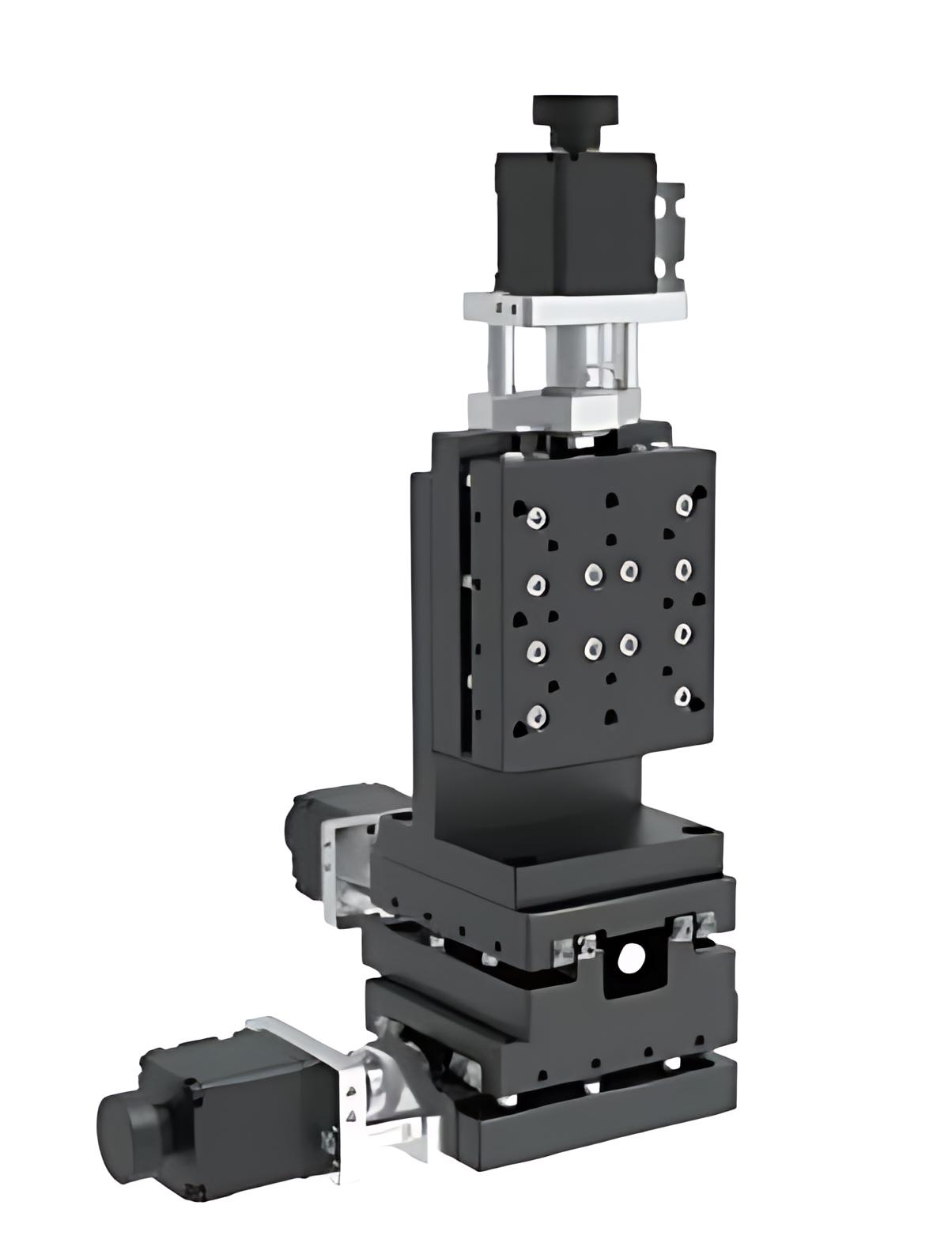

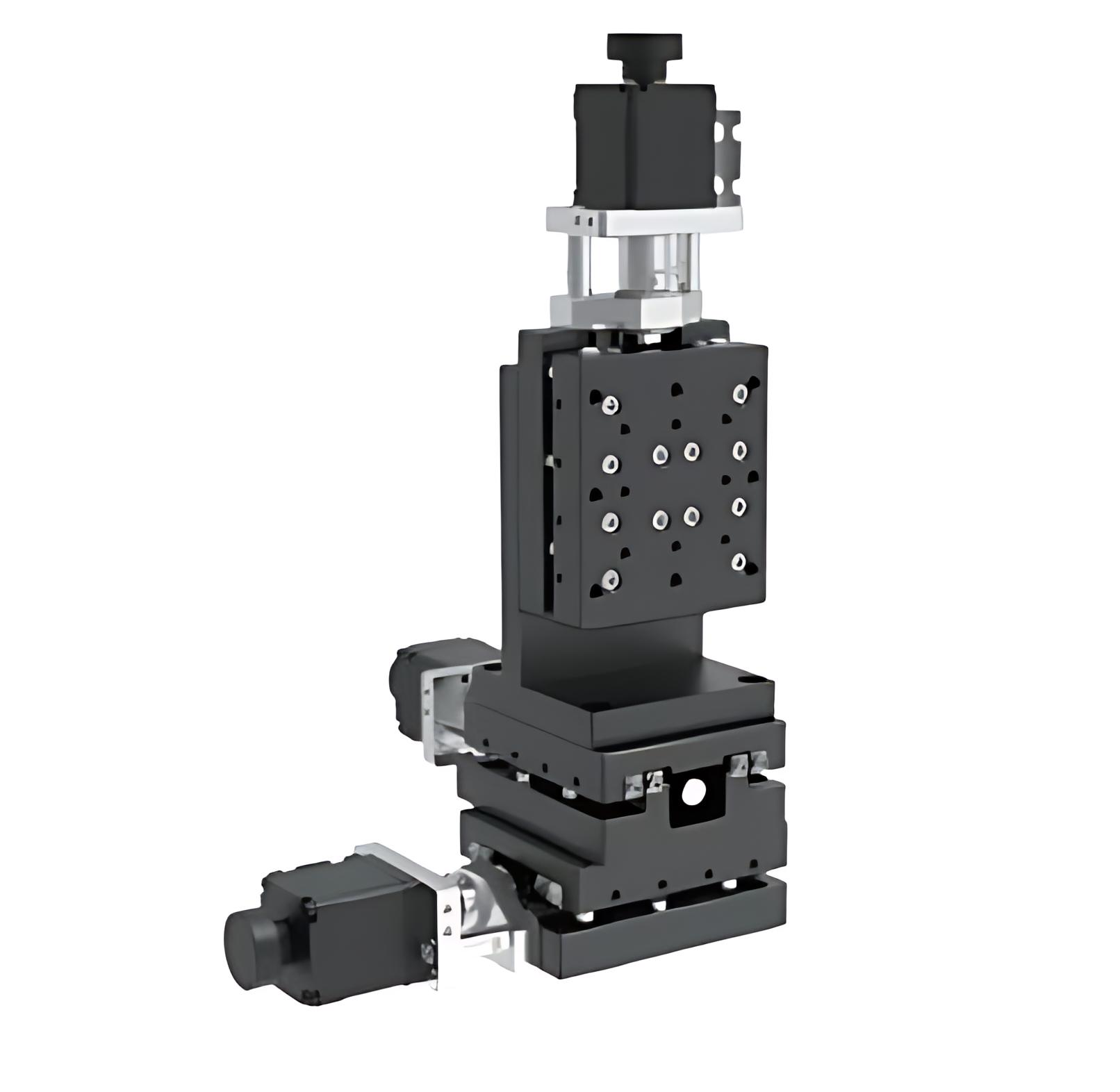

• LAXYZ4715-L, LAXYZ620-L



• LAXYZ630-L



​​​​​​​

---

Features :

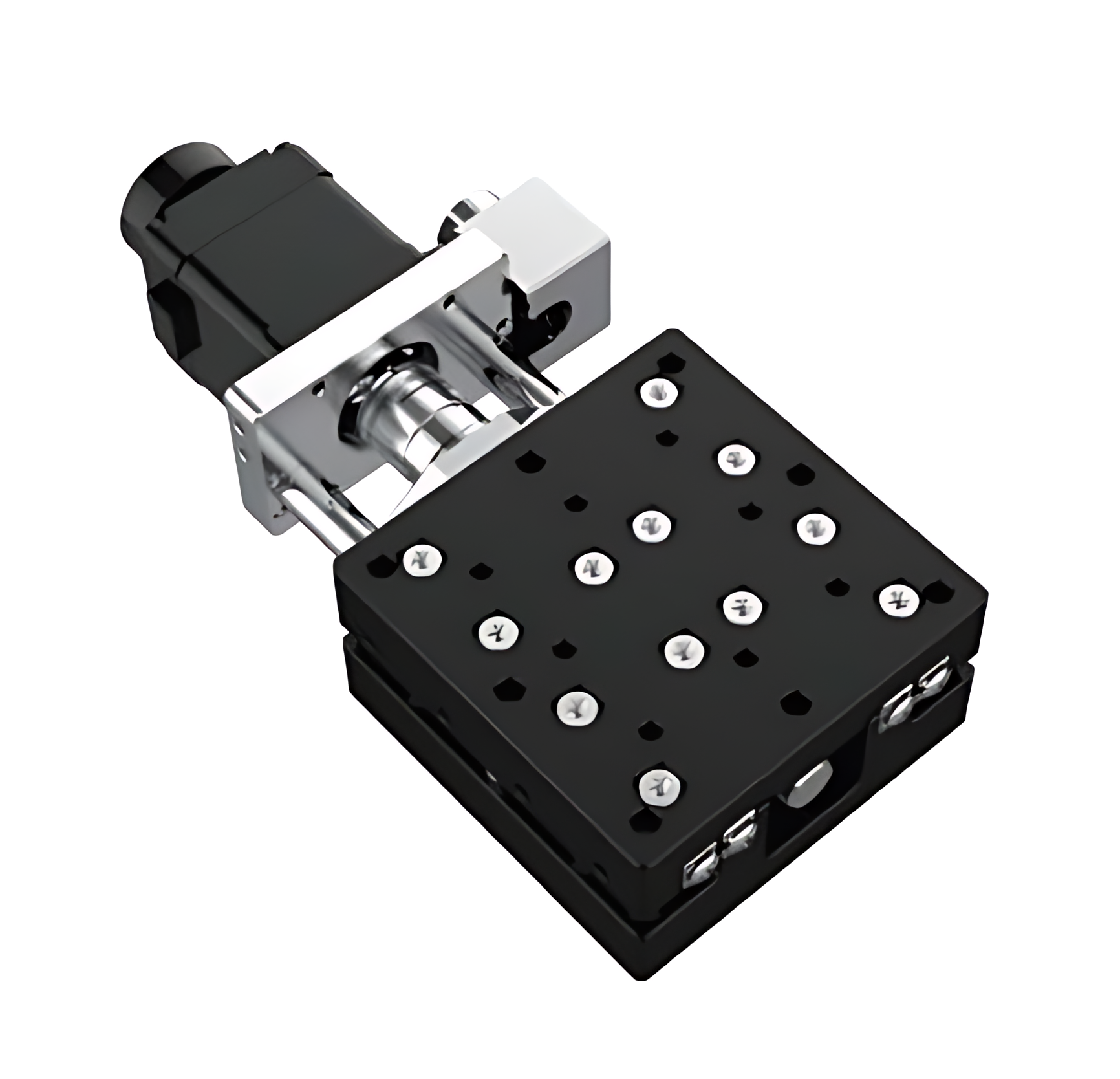

1. The LAX series translation stages are economical motorized translation stages.
2. They are primarily constructed of aluminum alloy, with a black anodized surface treatment that effectively prevents light reflection and offers excellent rust resistance.
3. The built-in photoelectric switch minimizes the stage's footprint, accommodating a wider range of workstations.
4. Standard platform with 28-inch stepper motor.
5. Custom travel options are available through consultation with our technical support staff.
6. Extension cable order model: ASCBXB-T (X represents length, ranging from 2 to 8 meters).



---

Dimension :

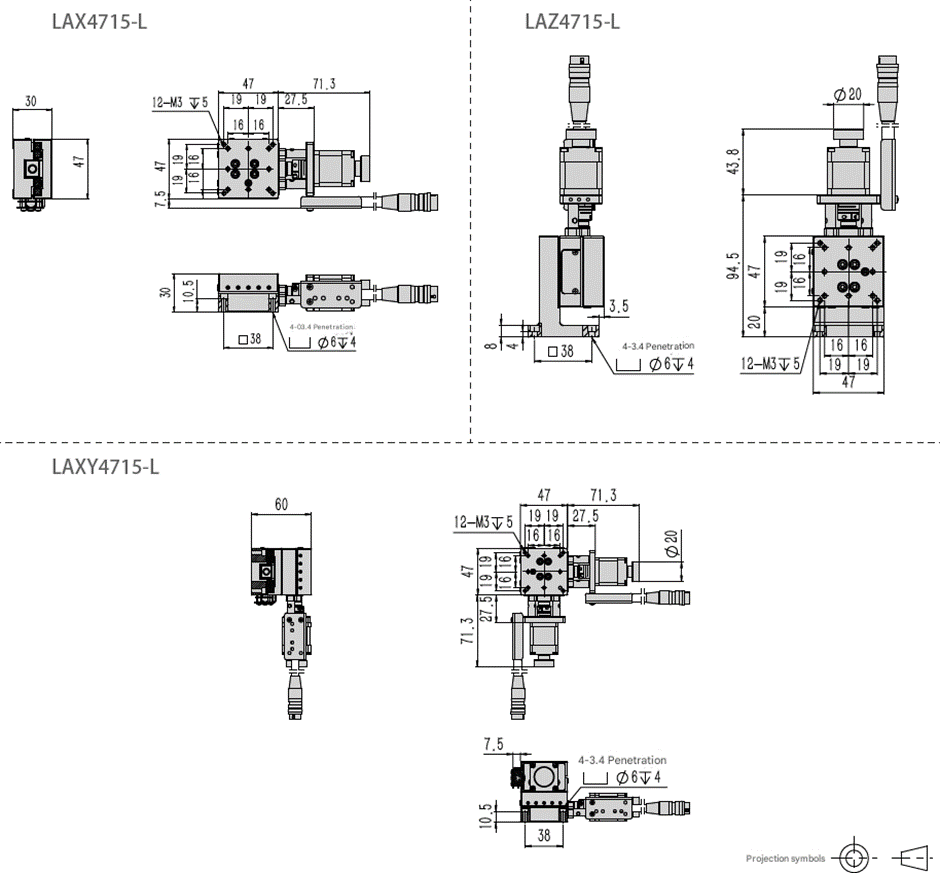

• LAX4715-L, LAZ4715-L, LAXY4715-L

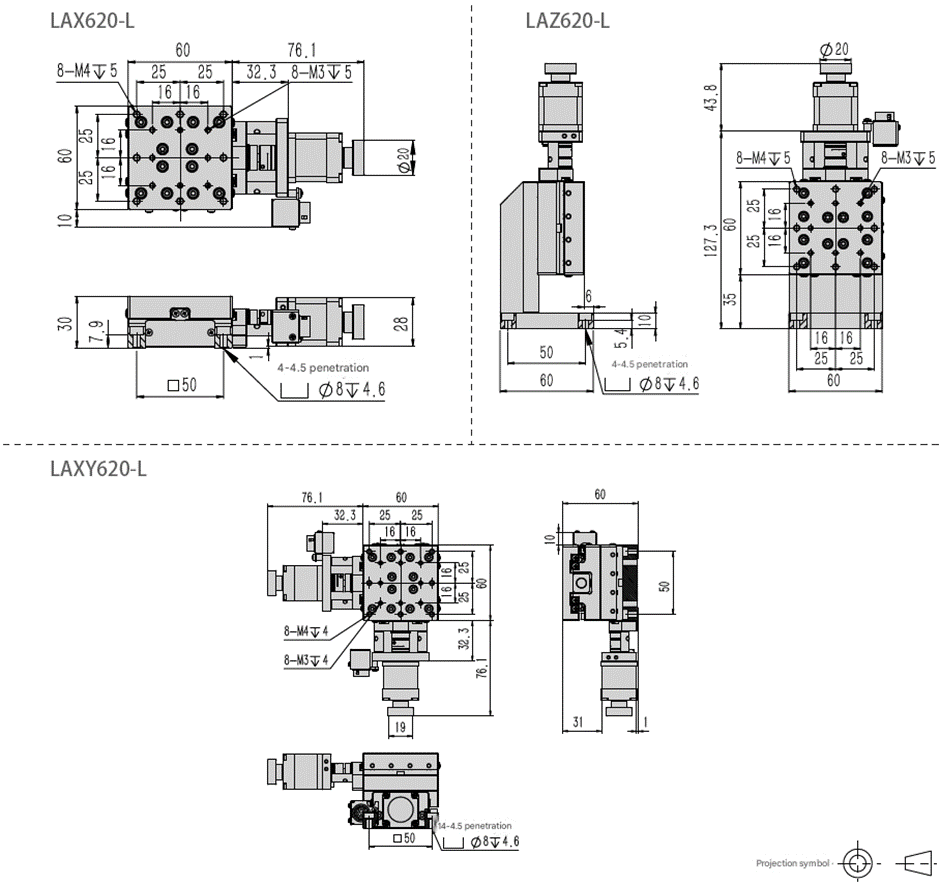

• LAX620-L​​​​​​​, LAZ620-L​​​​​​​, LAXY620-L

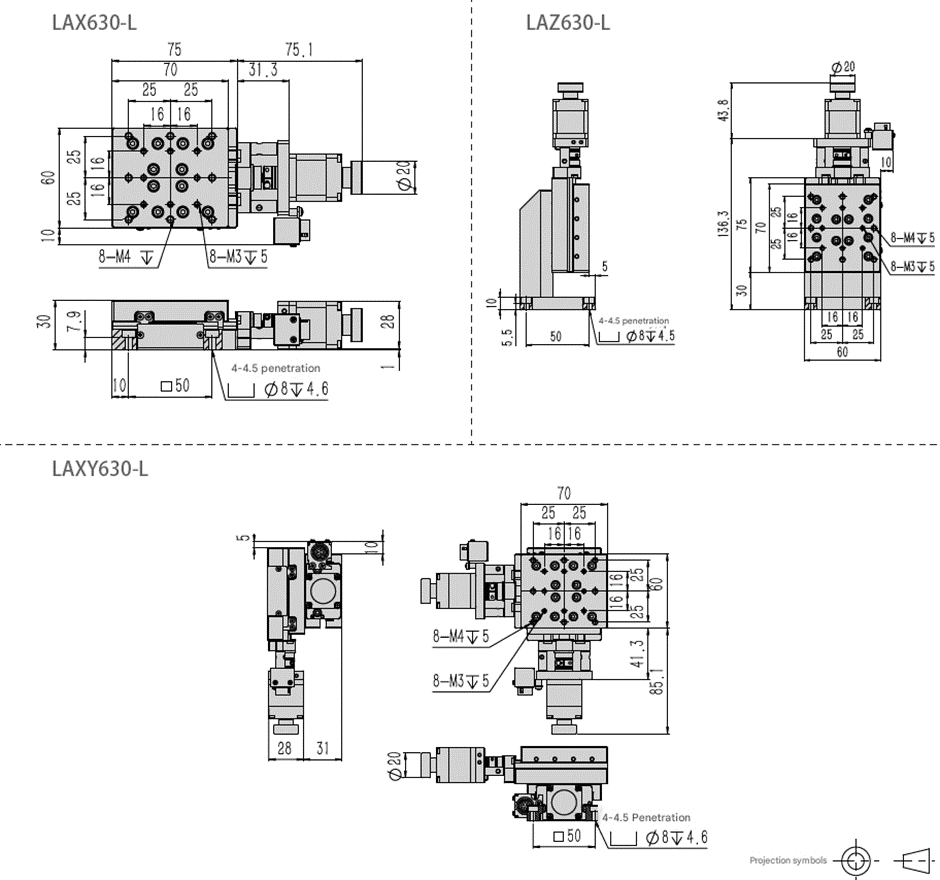

• LAX630-L, LAZ630-L, LAXY630-L

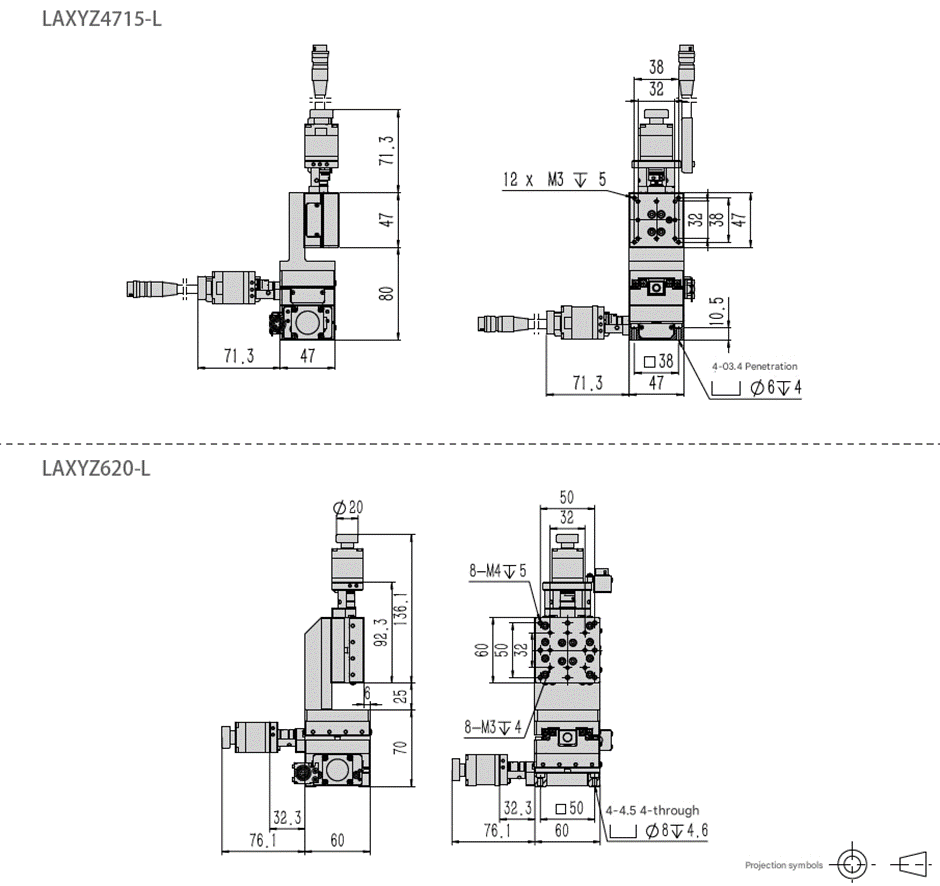

• LAXYZ4715-L, LAXYZ620-L

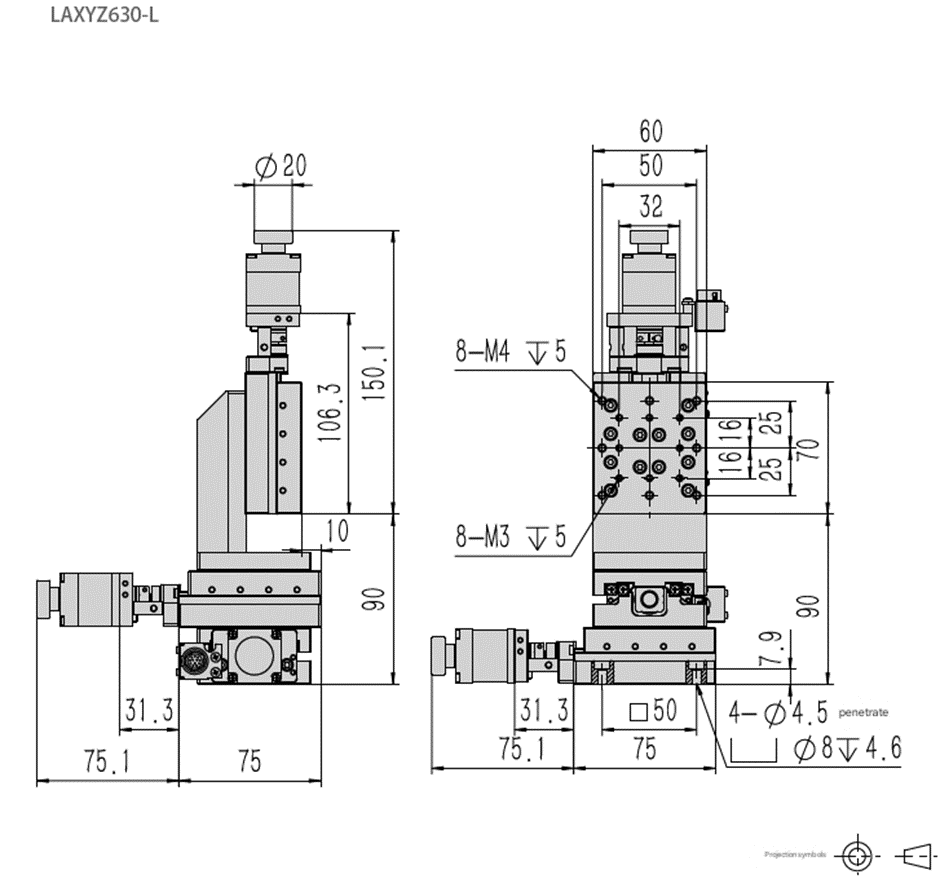

• LAXYZ630-L



---

Specifications :


• LAX4715-L, LAZ4715-L, LAXY4715-L

Model	LAX4715-L/R	LAZ4715-L/R	LAXY4715-L/R
Movement amount	15mm
Slide table size	47x47 mm
Feed screw (ball screw)	Φ6 Lead 1
Guide	Cross sub-rail
Main material - surface treatment	Rolled Aluminum - Black Anode
Self-respect	About 0.35kg	About 0.6kg	About 0.7kg
Move direction	X-axis	Z-axis	XY-axis
Maximum speed	10mm /sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1um
Load	5kgf	3kgf	5kgf
Invalid movement	3um within
Straightness	3um within
Parallelism	Within 30um
Limit sensor	2
Origin sensor	1



• LAX620-L​​​​​​​, LAZ620-L​​​​​​​, LAXY620-L

Model	LAX620-L/R	LAZ620-L/R	LAXY620-L/R
Movement amount	20mm
Slide table size	60x60 mm
Feed screw (ball screw)	Φ8 lead 1
Guide	Cross sub-rail
Main material - surface treatment	Rolled Aluminum - Black Anode
Self-respect	About 0.45kg	About 0.9kg	About 0.9kg
Move direction	X-axis	Z-axis	XY-axis
Maximum speed	10mm /sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1um
Load	5kgf	3kgf	5kgf
Invalid movement	3um within
Straightness	3um within
Parallelism	Within 30um
Limit sensor	2
Origin sensor	1



• LAX630-L, LAZ630-L, LAXY630-L

Model	LAX630-L/R	LAZ630-L/R	LAXY630-L/R
Movement amount	30mm
Slide table size	60x70 mm
Feed screw (ball screw)	Φ8 lead 1
Guide	Cross sub-rail
Main material - surface treatment	Rolled Aluminum - Black Anode
Self-respect	About 0.5kg	About 0.95kg	About 1kg
Move direction	X-axis	Z-axis	XY-axis
Maximum speed	10mm /sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1um
Load	5kgf	3kgf	5kgf
Invalid movement	3um within
Straightness	3um within
Parallelism	Within 30um
Limit sensor	2
Origin sensor	1

• LAXYZ4715-L, LAXYZ620-L

Model	LAXYZ4715-L/R	LAXYZ620-L/R
Movement amount	15mm	20mm
Slide table size	60x60 mm	47x47 mm
Feed screw (ball screw)	Φ8 lead 1
Guide	Cross sub-rail
Main material - surface treatment	Rolled Aluminum - Black Anode
Self-respect	About 1.3kg	About 1.8kg
Move direction	XYZ axis	Z-axis
Maximum speed	10mm /sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1um
Load	3kgf
Invalid movement	3um within
Straightness	3um within
Parallelism	Within 30um
Limit sensor	2
Origin sensor	1

• LAXYZ630-L

Model	LAXYZ630-L/R
Movement amount	30mm
Slide table size	60x70 mm
Feed screw (ball screw)	Φ8 lead 1
Guide	Cross sub-rail
Main material - surface treatment	Rolled Aluminum - Black Anode
Self-respect	About 1.95kg
Move direction	XYZ axis
Maximum speed	10mm /sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1um
Load	3kgf
Invalid movement	3um within
Straightness	3um within
Parallelism	Within 30um
Limit sensor	2
Origin sensor	1

---
