Details

---

MK81 series is 8 passages Pneumatic Rotary Union(Can combine electric wires), with connection size G1/8",
compact size, light weight, low torqure, Also optional for transmitting power line, signal line, industrial bus, control
line, Electromagnetic valve, induction line, etc.; Standard installation is flange mounting.
Media Types: compressed Air/Gas, vacuum, etc.



Model :


• MK81



• MK81S-SXX



• MK81S-S56



• MK81-PXX-SXX

---

Features :


---

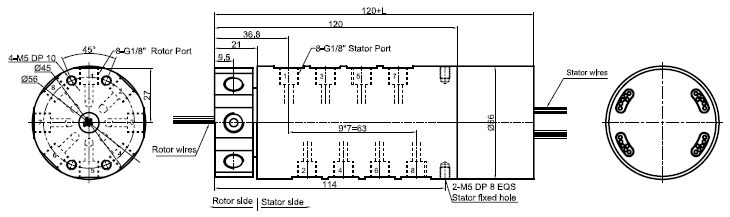

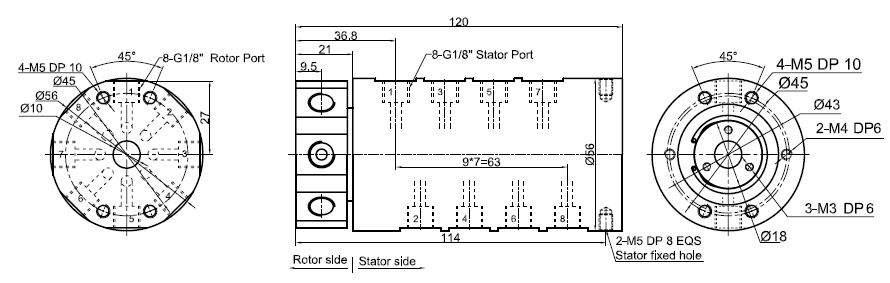

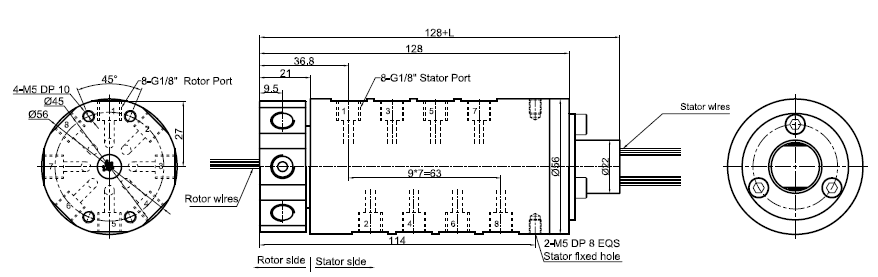

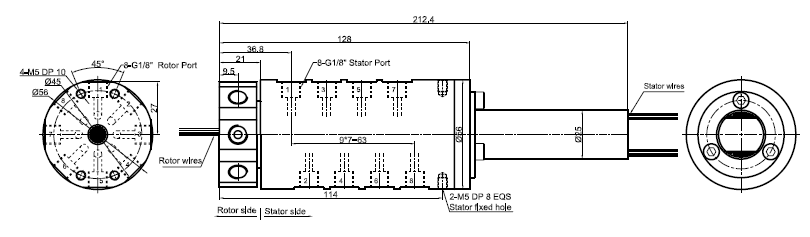

Dimension :


• MK81



• MK81S-SXX



• .MK81S-S56



• MK81-PXX-SXX



---

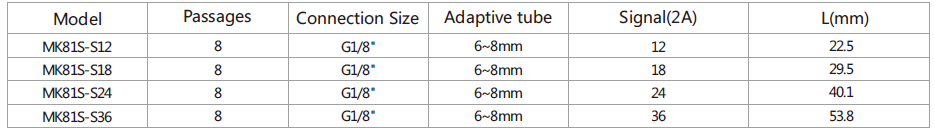

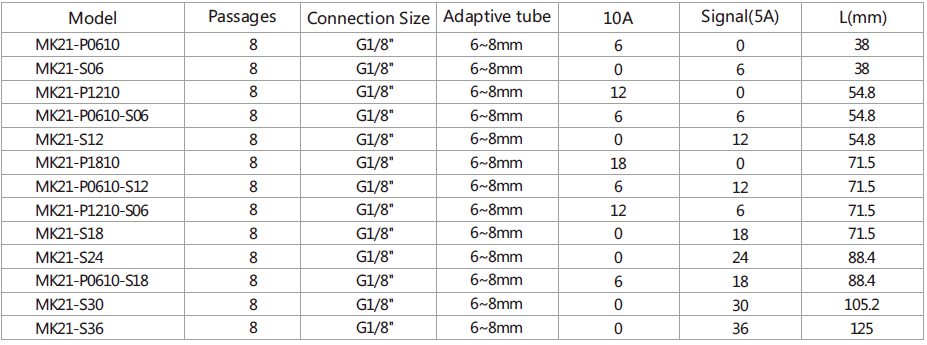

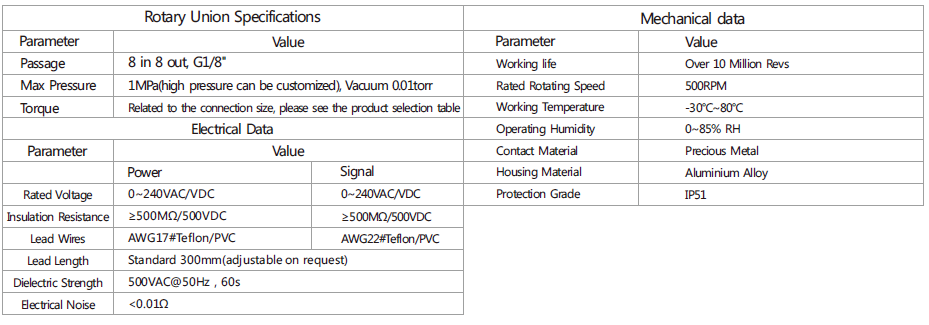

Specifications :




---
