Details

---

MK41 series is 4 passages Pneumatic Rotary Union (Can combine electric wires), with connection size G1/8",
compact size, light weight, low torqure, Also optional for transmitting power line, signal line, industrial bus, control
line, Electromagnetic valve, induction line, etc.; Standard installation is flange mounting.
Media Types: compressed Air/Gas, vacuum, etc.



Model :



• MK41



• MK41S-S12



• MK41S-S56



• MK41-PXX-SXX

---

Features :


• Light weight, compact size, and low torque.
• Transmitting gas, vacuum on 360° rotating， can combine with electrical power, signal and/or data transfer.
• Support 1/2/3/4/5/6/8/10/12/16/24 Pneumatic passages.
• Support 1~128 wires electrical power/signal.
• Standard connection size G1/8", G3/8" and so on.
• Different pipe size for gas can be customized.
• Can transmit compressed air, vacuum, steam and other media.
• High speed and high voltage can be customized.



---

Dimension :

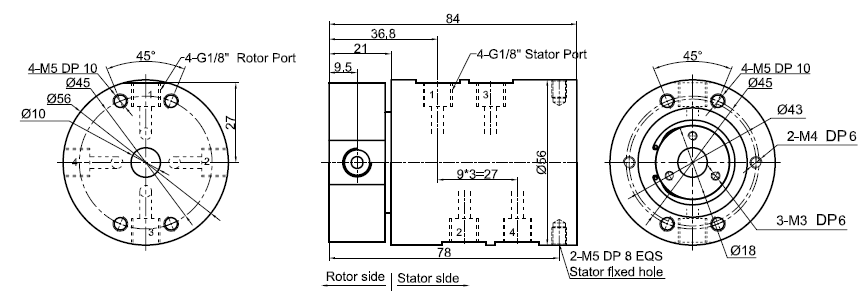

• MK41

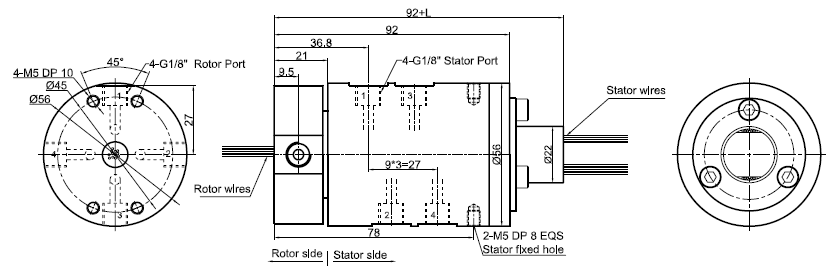

• MK41S-S12

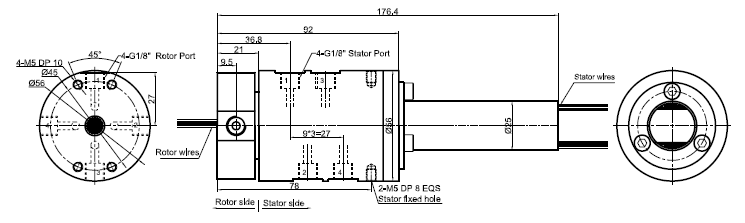

• MK41S-S56

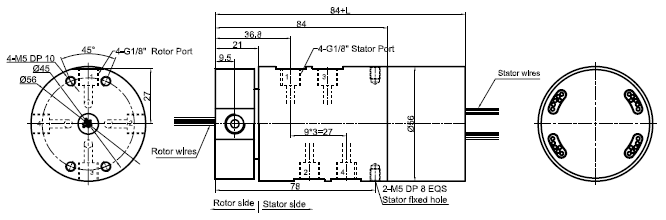

• MK41-PXX-SXX

​​​​​​​

---

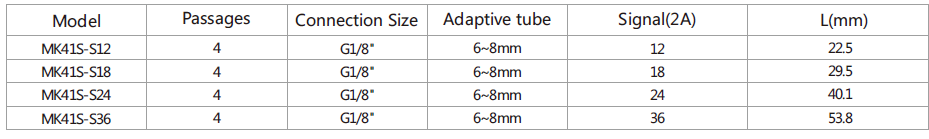

Specifications :

---
