Details

---



MK13A series single channel rotary joint, interface size G3 / 8 ", compact structure, light weight, corrosion resistance, stainless steel shaft and
aluminum shell All MK series models are equipped with male thread shaft and female thread shell as standard for easy installation.



Model :


• MK13A

​​​​​​​

---

Features :


• Light weight, compact size, and low torque.
• Transmitting gas, vacuum on 360° rotating, can combine with electrical power, signal and/or data transfer.
• Support 1/2/3/4/5/6/8/10/12/16/24 Pneumatic passages.
• Support 1~128 wires electrical power/signal.
• Standard connection size G1/8", G3/8" and so on.
• Different pipe size for gas can be customized.
• Can transmit compressed air, vacuum, steam and other media.
• High speed and high voltage can be customized.



---

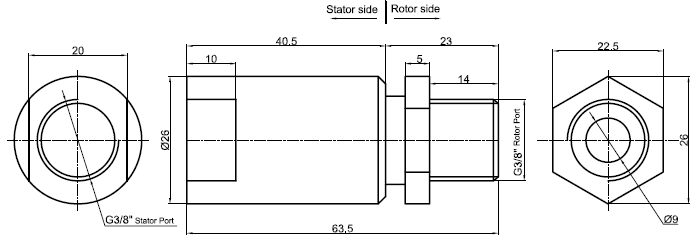

Dimension :






---

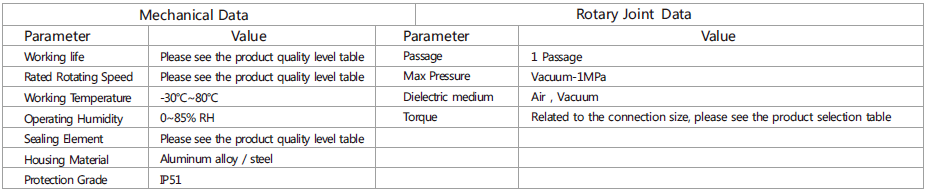

Specifications :

---
