Details

---

Model :


• STM-010-A0030V
• STM-010-A0050V
• STM-010-A0070V

---

Dimension :

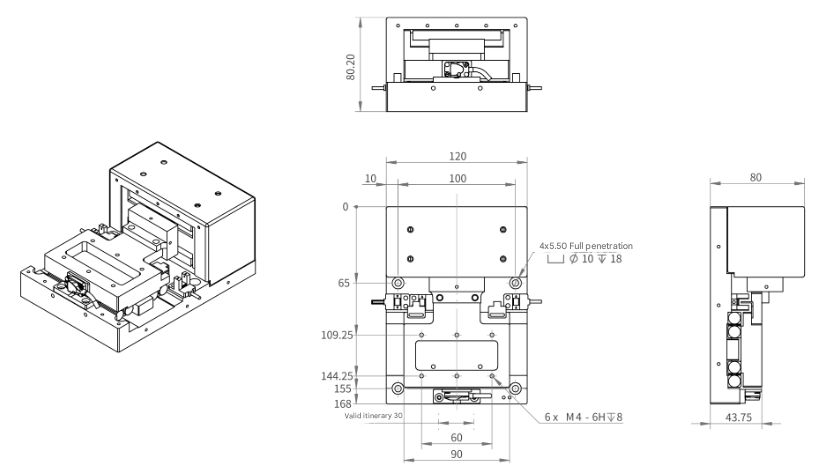

• STM-010-A0030V

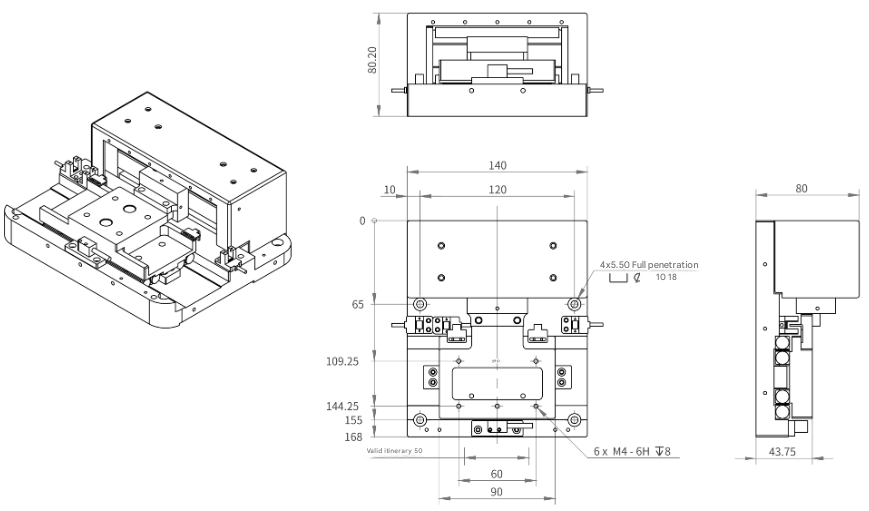

• STM-010-A0050V

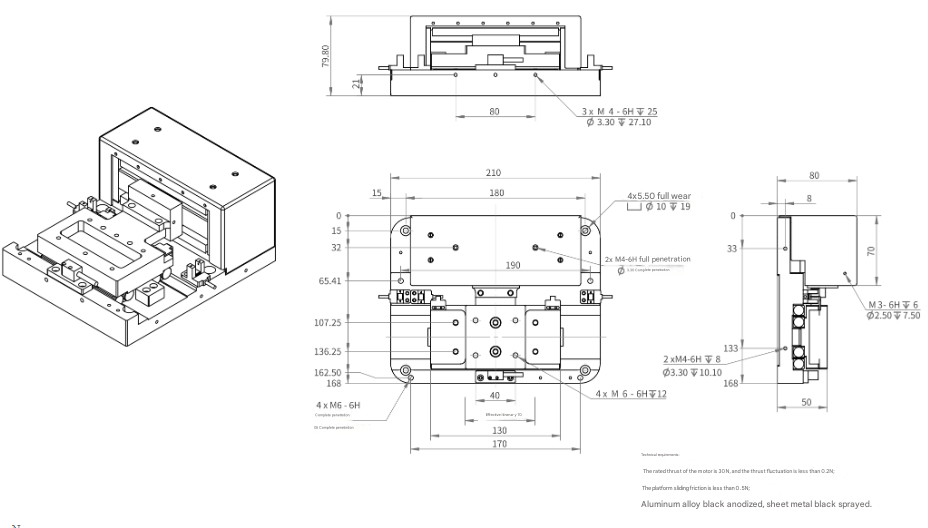

• STM-010-A0070V



---

Specifications :


Model parameters	STM-010-A0030V	STM-010-A0050V	STM-010-A0070V
Rated thrust	31 N
Peak thrust	93 N
Continuous current	4.5 Arms
Peak current	13.5 Arms
Maximum load	5 kg
Valid itinerary	30mm	50mm	70mm
Maximum stroke	40mm	60mm	80mm
Guide	Cross roller guide	Cross roller guide	Cross roller guide
Horizontal straightness	3 um
Origin reference	External origin + Z phase
Motor resistance	0.9 Ω
Motor inductance	1.3 mH
Resolution	Optional grating: 0.1um/0.5um Magnetic grating: 1um
Repeat positioning accuracy	±0.5 (0.1/0.5um grating) ±1(1um magnetic grating)
Overall dimensions	120 × 168 × 80 mm	140 × 168 × 80 mm	210 × 168 × 80 mm

---
