Details

---

Model :


• STUF150-XY
• STUF205-XY
• STUF280-XY
• STUF360-XY
• STUF400-XY

---

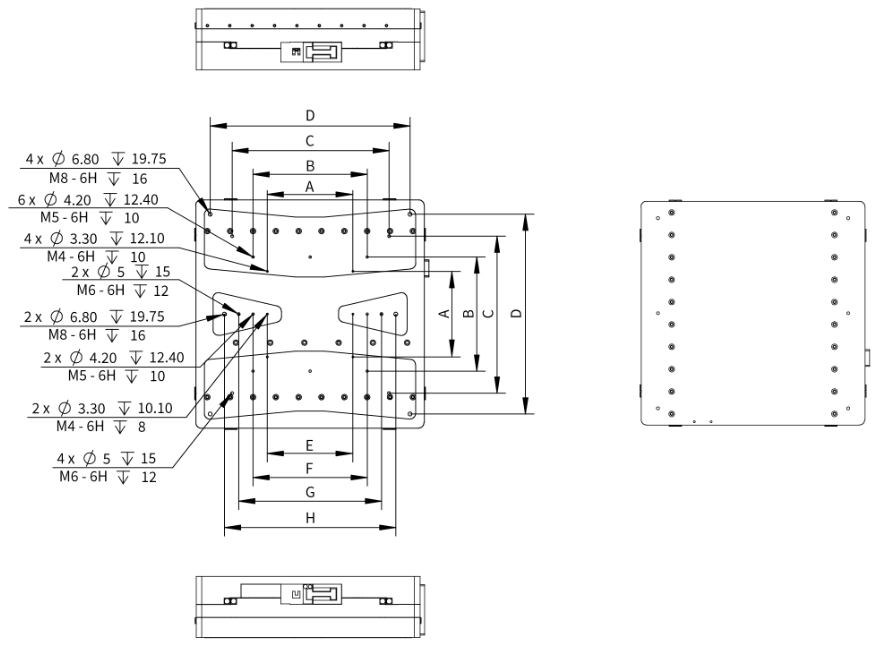

Dimension :




Model / Parameters	Journey	Length	Width	Height	A	B	C	D	E	F	G	H
STUF150-XY	50 × 50	150	150	80	50	75	100	-	50	75	100	-
STUF205-XY	100 × 100	205	205	80	80	100	125	-	75	100	125	-
STUF280-XY	150 × 150	280	280	80	100	150	175	-	150	175	200	-
STUF360-XY	200 × 200	360	360	110	150	200	275	-	150	200	250	-
STUF400-XY	250 × 250	400	400	110	150	200	275	350	150	200	250	300

---

Specifications :

Model parameters	STUF150-XY	STUF205-XY	STUF280-XY	STUF360-XY	STUF400-XY
Resolution (optional)	50nm(optional: 5um, 1um, 0.5um, 0.1um, 10nm, 5nm)
Repeat positioning accuracy (um)	≤±0.2	<±0.2	<±0.2	<±0.2	≤±0.2
Absolute positioning accuracy (um)	≤±1	≤±1	≤±1.5	≤±2	≤±3
Horizontal straightness(um)	≤±1	≤±1	<±1.5	≤±2	<±2.5
Flatness(um)	≤±5	≤±5	≤±5	≤±5	≤±5
Pitch (arc sec)	10	12	12	15	16
Yaw (arc sec)	10	12	12	15	16
Roll (arc sec)	5	6	6	8	9
Orthogonality (arc sec)	5	5	5	5	5
Peak thrust (X&Y) (N)	88	88	132	288	288
Continuous thrust (X&Y) (N)	17.6	17.6	26.4	72	72
Motor constant (N/W)	4.3	4.3	5.2	8.8	8.8
Peak current (Arms)	8	8	8	9.2	9.2
Continuous Current(Arms)	1.6	1.6	1.5	2.3	2.3
Thrust constant (N/Arms)	11	11	16.5	31.4	31.4
Back EMF constant (Vpeak/m/s) 9	9	9	13.5	25.7	25.7
Polar distance (mm)	15	15	15	30	30
Maximum speed (mm/s)	500	500	500	500	500
Maximum acceleration (no load)	6G(X)3.2G(Y)	2.6G(X)1.2G(Y)	2.5G(X)1G(Y)	2.3G(X)0.9G(Y)	1.5G(X)0.6G(Y)
Maximum horizontal load (kg)	10	15	20	25	30
Mass of moving parts (kg)	1.4kg(X)2.8kg(Y)	3.4kg(X)2.8kg(Y)	5.2kg(X)13kg(Y)	12.4kg(X)30kg(Y)	18.5kg(X)43.3kg(Y)
Total platform weight (kg)	3.3	9.5	18	40	60
Material	Aviation grade aluminum alloy/black anodized
Mean Time Between Failures (MTBF)	≥5000 hours

---
