Details
Model :
- STVF140-XYθ
- STVF140-XYZθ
- STVF140-XY
Dimension :

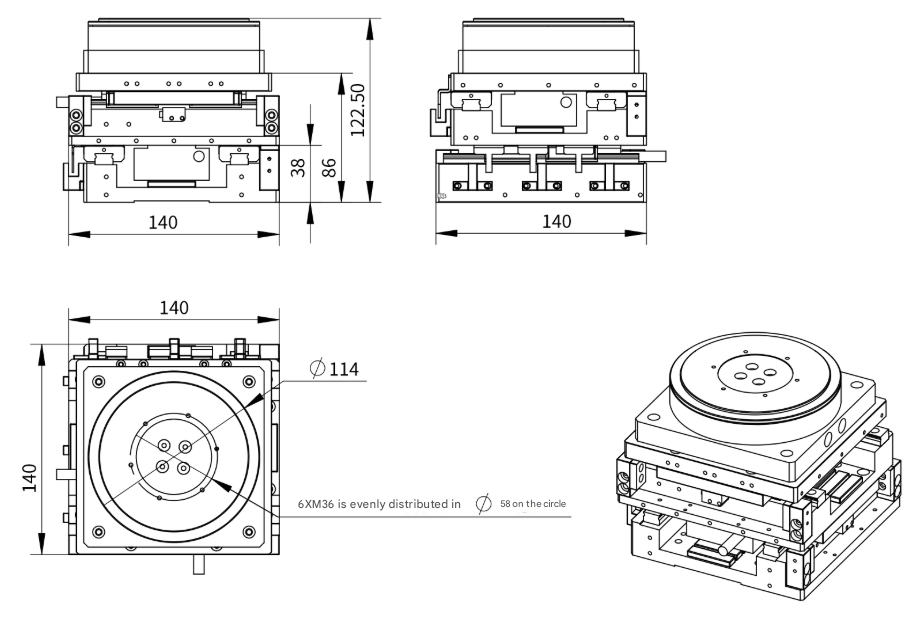

- STVF140-XYθ
.png){kind=spacer}

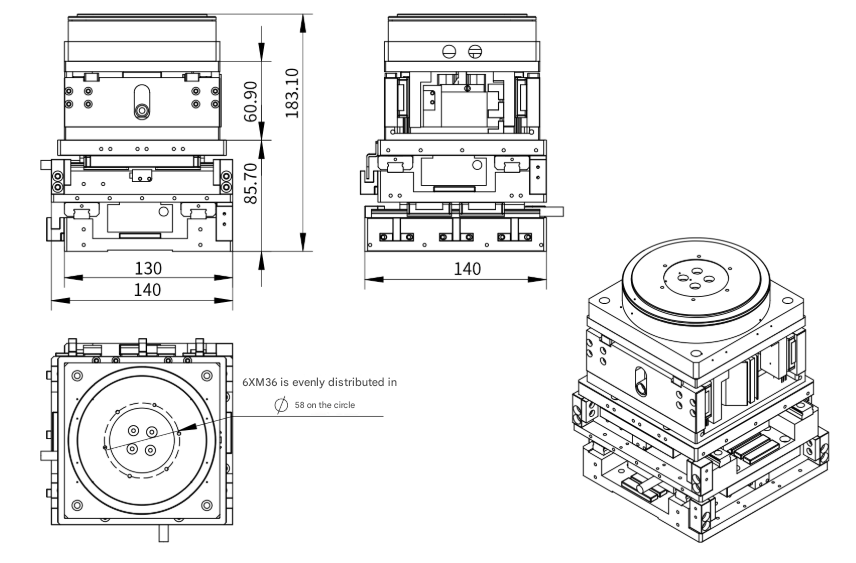

- STVF140-XYZθ
.png){kind=spacer}

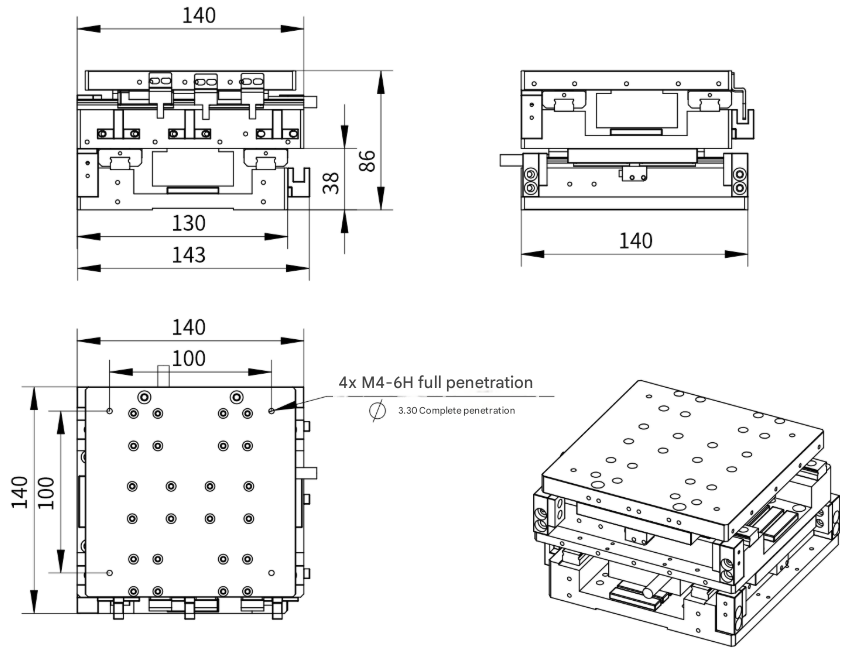

- STVF140-XY
Specifications :
- STVF140-XYθ
| Parameter | X-axis | Y-axis | Parameter | 0 axis | |
| Continuous thrust(N) | 62 | Continuous torque(Nm) | 1.1 | ||
| Peak thrust(N) | 206 | Peak torque(Nm) | 5.5 | ||
| Continuous Current(Arms) | 3 | Continuous Current(Arms) | 2 | ||
| Peak current (Arms) | 13.8 | Peak current (Arms) | 10 | ||
| Positioning time (ms) | <100 | Rated speed (rpm) | 100 | ||
| Allowable load (Kg) | <3 | <3 + X | Maximum speed (rpm) | 200 | |
| Resolution(um) | 0.1、0.5、1 | Repeat positioning accuracy (°) | ±0.005 | ||
| Repeat accuracy(um) | ±1 | Absolute positioning accuracy (°) | |||
| Straightness(um) | ±1.5 | Angle range(°) | 360° | ||
| Flatness(um) | ±2 | Diameter(mm) | 114 | ||
| Stroke(mm) | 20 | Rotor moment of inertia (KG.m²) | 0.00213 | ||
| Weight(Kg) | 3.6 | 3.3 | Weight(kg) | 1.8 | |
| Platform Fitness (um) | ±5 | ||||
| Platform size L × W × H (mm) (excluding sensor) | 140 × 140 × 122.5 | ||||
| Platform weight (kg) | 8.7 | ||||
- STVF140-XYZθ
| Parameter | X-axis | Y-axis | Z-axis | Parameter | 0 axis | |
| Continuous thrust(N) | 62 | 22.6 | Continuous torque(Nm) | 1.1 | ||
| Peak thrust(N) | 206 | 89 | Peak torque(Nm) | 5.5 | ||
| Continuous Current(Arms) | 3 | 3.8 | Continuous Current(Arms) | 2 | ||
| Peak current (Arms) | 13.8 | 11.4 | Peak current (Arms) | 10 | ||
| Positioning time (ms) | <100 | <100 | Rated speed (rpm) | 100 | ||
| Allowable load (Kg) | <3 | <3 + X | <5 + X | Maximum speed (rpm) | 200 | |
| Resolution(um) | 0.1、0.5、1 | Repeat positioning accuracy (°) | ±0.005 | |||
| Repeat accuracy(um) | ±1 | Absolute positioning accuracy (°) | ||||
| Straightness(um) | ±1.5 | Angle range(°) | 360° | |||
| Flatness(um) | ±2 | Diameter(mm) | 114 | |||
| Stroke(mm) | 20 | 8 | Rotor moment of inertia (KG.m²) | 0.00213 | ||
| Dimension L × W × H (mm) | 130 × 140 | 100 × 100 | Weight(kg) | 1.8 | ||
| Weight(Kg) | 3.6 | 3.3 | 1.8 | |||
| Platform Fitness (um) | ±5 | |||||
| Platform size L × W × H (mm) (excluding sensor) | 140 × 140 × 183.1 | |||||
| Platform weight (kg) | 10.5 | |||||
- STVF140-XY
| Parameter | X-axis | Y-axis |
| Continuous thrust(N) | 62 | |
| Peak thrust(N) | 206 | |
| Continuous Current(Arms) | 3 | |
| Peak current (Arms) | 13.8 | |
| Positioning time (ms) | <100 | |
| Allowable load (Kg) | <3 | <3 + X |
| Resolution(um) | 0.1、0.5、1 | |
| Repeat accuracy(um) | ±1 | |
| Straightness(um) | ±1.5 | |
| Flatness(um) | ±4.0 | |
| Stroke(mm) | 20 | |
| 140 × 140 × 86 | ||
| Weight(Kg) | 6.9 | |
