Details
Model :
- STVF120-Xθ
- STVF120-XY
- STVF120-XYθ
- STVF120-XYZθ
Dimension :

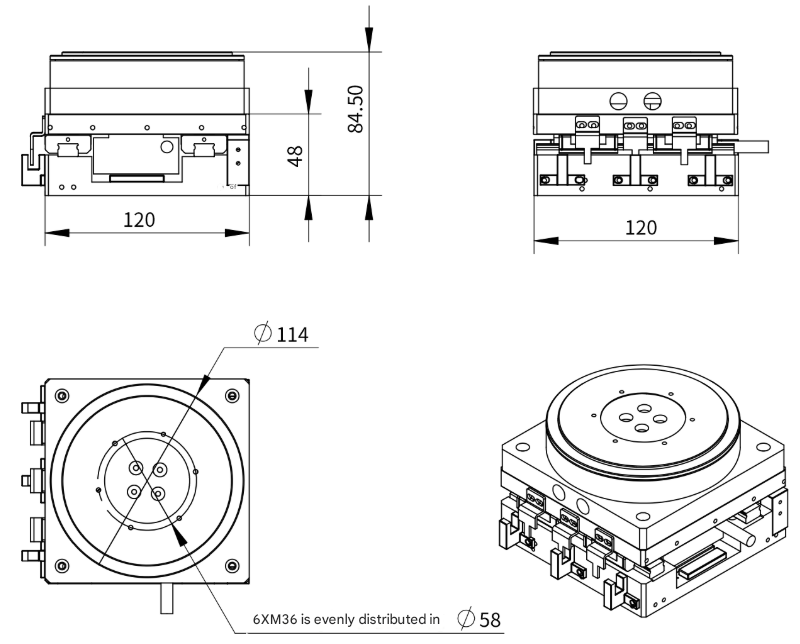

- STVF120-Xθ

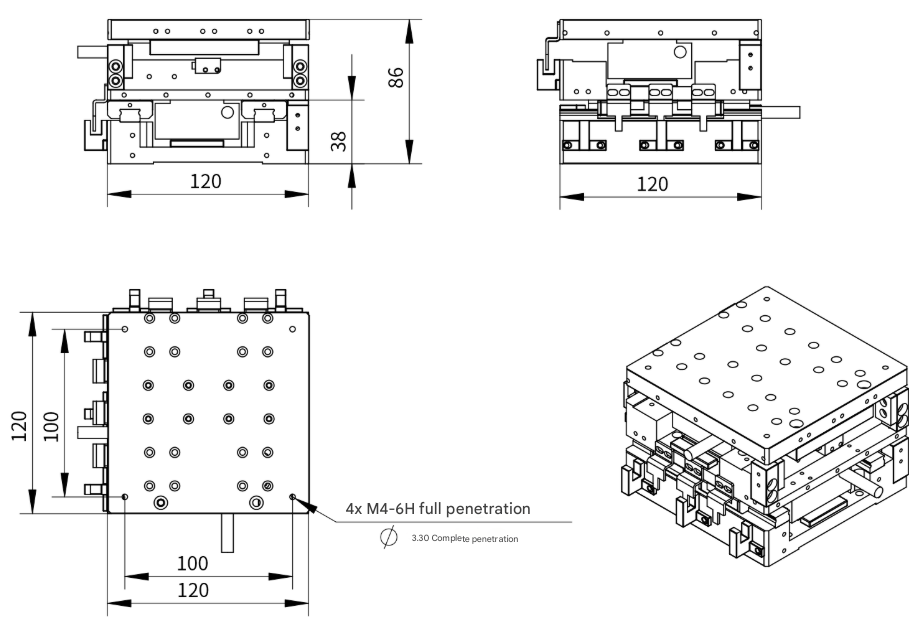

- STVF120-XY
.png){kind=spacer}

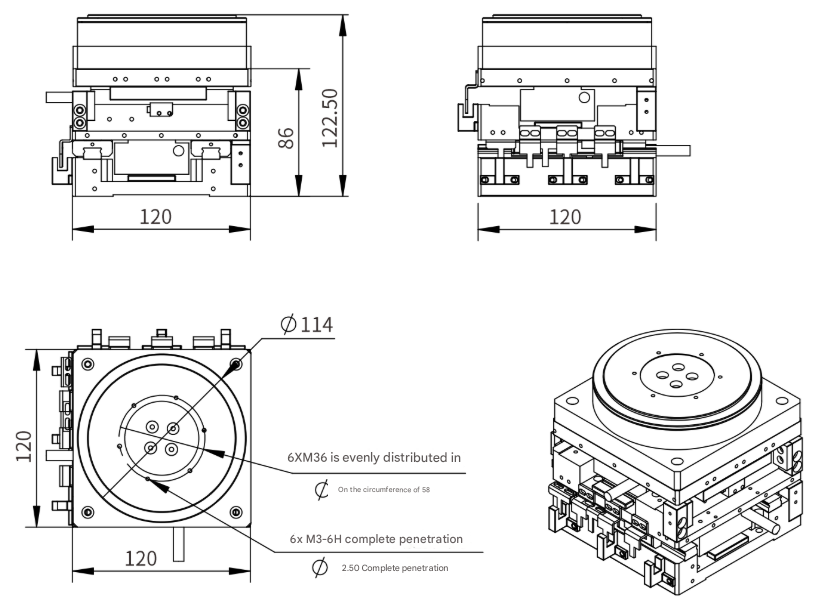

- STVF120-XYθ
.png){kind=spacer}

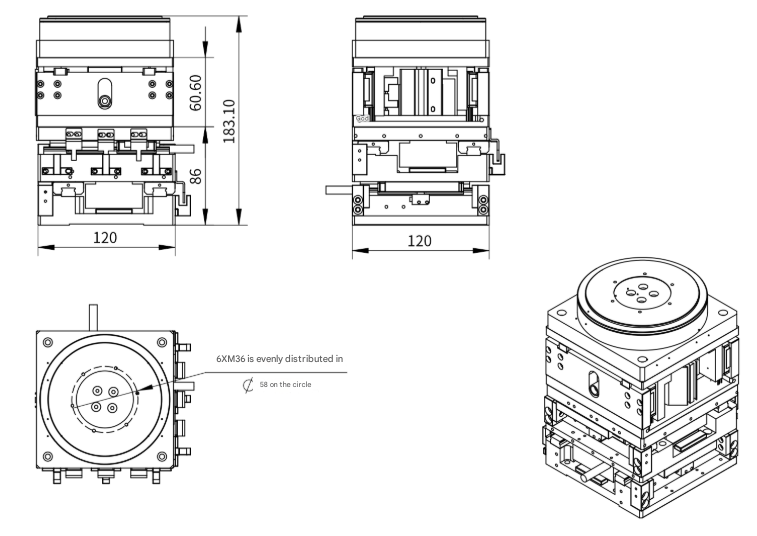

- STVF120-XYZθ
.png){kind=spacer}
Specifications :
- STVF120-Xθ
| Parameter | X-axis | Parameter | 0 axis | |
| Continuous thrust(N) | 39 | Continuous torque(Nm) | 1.1 | |
| Peak thrust(N) | 129 | Peak torque(Nm) | 5.5 | |
| Continuous Current(Arms) | 2.5 | Continuous Current(Arms) | 2 | |
| Peak current (Arms) | 11.5 | Peak current (Arms) | 10 | |
| Positioning time (ms) | <100 | Rated speed (rpm) | 100 | |
| Allowable load (Kg) | <3 | Maximum speed (rpm) | 200 | |
| Resolution(um) | 0.1、0.5、1 | Repeat positioning accuracy (°) | ±0.005 | |
| Repeat accuracy(um) | ±1 | Absolute positioning accuracy (°) | ||
| Straightness(um) | ±1.5 | Angle range(°) | 360° | |
| Flatness(um) | ±2 | Diameter(mm) | 114 | |
| Stroke(mm) | 15 | Rotor moment of inertia (KG.m²) | 0.00213 | |
| Dimension L × W × H (mm) (excluding sensor) | 120 × 120 × 48 | Weight(kg) | 1.8 | |
| Weight(Kg) | 3.2 | |||
| Platform size L × W × H (mm) (excluding sensor) | 120 × 120 × 84.5 | |||
| Platform weight (kg) | 5 |
- STVF120-XY
| Parameter | X-axis | Y-axis |
| Continuous thrust(N) | 39 | |
| Peak thrust(N) | 129 | |
| Continuous Current(Arms) | 3 | |
| Peak current (Arms) | 13.8 | |
| Positioning time (ms) | <100 | |
| Allowable load (Kg) | <3 | <3 + X |
| Resolution(um) | 0.1、0.5、1 | |
| Repeat accuracy(um) | ±1 | |
| Straightness(um) | ±1.5 | |
| Flatness(um) | ±4.0 | |
| Stroke(mm) | 20 | |
| Dimension L × W × H (mm) (excluding sensor) | 120 × 120 × 86 | |
| Weight(Kg) | 6.2 | |
- STVF120-XYθ
| Parameter | X-axis | Y-axis | Parameter | 0 axis | |
| Continuous thrust(N) | 39 | Continuous torque(Nm) | 1.1 | ||
| Peak thrust(N) | 129 | Peak torque(Nm) | 5.5 | ||
| Continuous Current(Arms) | 3 | Continuous Current(Arms) | 2 | ||
| Peak current (Arms) | 13.8 | Peak current (Arms) | 10 | ||
| Positioning time (ms) | <100 | Rated speed (rpm) | 100 | ||
| Allowable load (Kg) | <3 | <3 + X | Maximum speed (rpm) | 200 | |
| Resolution(um) | 0.1、0.5、1 | Repeat positioning accuracy (°) | ±0.005 | ||
| Repeat accuracy(um) | ±1 | Absolute positioning accuracy (°) | |||
| Straightness(um) | ±1.5 | Angle range(°) | 360° | ||
| Flatness(um) | ±2 | Diameter(mm) | 114 | ||
| Stroke(mm) | 20 | Rotor moment of inertia (KG.m²) | 0.00213 | ||
| Weight(Kg) | 3.2 | 3 | Weight(kg) | 1.8 | |
| Platform Fitness (um) | ±5 | ||||
| Platform size L × W × H (mm) (excluding sensor) | 120 × 120 × 122.5 | ||||
| Platform weight (kg) | 8 | ||||
- STVF120-XYZθ
| Parameter | X-axis | Y-axis | Z-axis | Parameter | 0 axis | |
| Continuous thrust(N) | 39 | 22.6 | Continuous torque(Nm) | 1.1 | ||
| Peak thrust(N) | 129 | 89 | Peak torque(Nm) | 5.5 | ||
| Continuous Current(Arms) | 3 | 3.8 | Continuous Current(Arms) | 2 | ||
| Peak current (Arms) | 13.8 | 11.4 | Peak current (Arms) | 10 | ||
| Positioning time (ms) | <100 | <100 | Rated speed (rpm) | 100 | ||
| Allowable load (Kg) | <3 | <3 + X | <5 + X | Maximum speed (rpm) | 200 | |
| Resolution(um) | 0.1、0.5、1 | Repeat positioning accuracy (°) | ±0.005 | |||
| Repeat accuracy(um) | ±1 | Absolute positioning accuracy (°) | ||||
| Straightness(um) | ±1.5 | Angle range(°) | 360° | |||
| Flatness(um) | ±2 | Diameter(mm) | 114 | |||
| Stroke(mm) | 20 | 8 | Rotor moment of inertia (KG.m²) | 0.00213 | ||
| Dimension L × W × H (mm) | 100 × 100 | Weight(kg) | 1.8 | |||
| Weight(Kg) | 2.2 | 2 | 1.3 | |||
| Platform Fitness (um) | ±5 | |||||
| Platform size L × W × H (mm) (excluding sensor) | 120 × 120 × 183.1 | |||||
| Platform weight (kg) | 9.8 | |||||
View more about Micro Positioning Stage (STVF120 Series) on main site
