Details

---

Model : SDM160-012



---

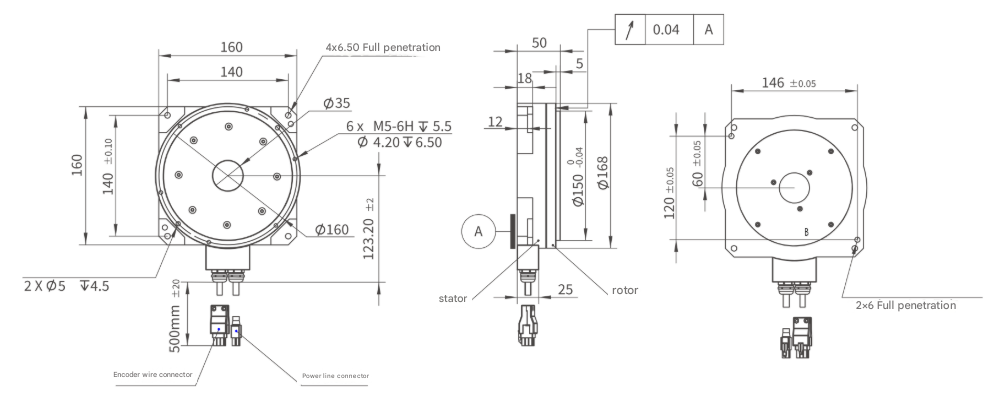

Dimension :






---

Specifications :


Model parameters	Unit	STP-SDM160-01211F31N-L005T-S05
Continuous torque ≥	Nm	4
Peak torque ≥	Nm	12
Continuous speed ≥	rpm	120
Peak speed ≥	rpm	240
Number of poles	PCS	40
Continuous current	Arms	3
Thrust constant≥	Nm/Arms	1.333
Peak current	Arms	9
Resistance	ohm	4.8
Inductance	mh	15
Absolute accuracy	arcsec	±30
Repeat accuracy	arcsec	±4
Axial force	N	600
Radial force	N	200
Coil maximum temperature	°C	155
Quality	kg	2.6
Moment of inertia of mover	kg × m²	0.0102

---
