Details

---

Model : SDM135-045



---

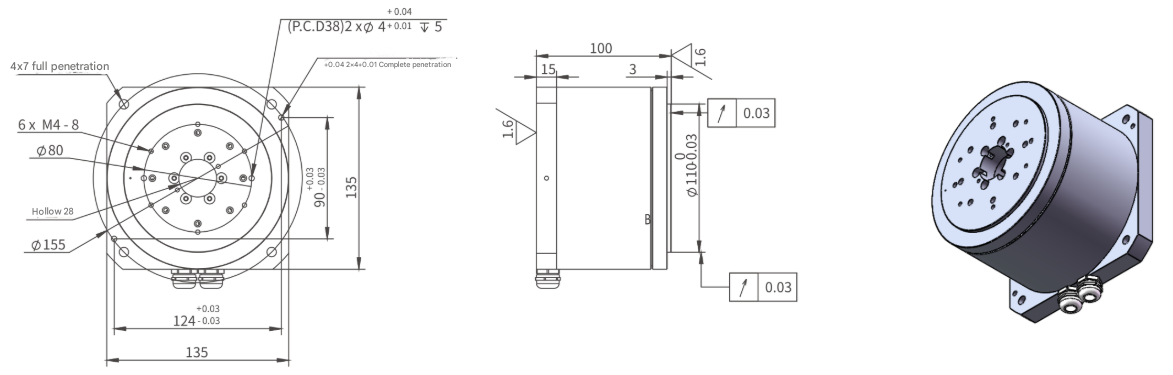

Dimension :






---

Specifications :

Model parameters	Unit	STP-SDM135-04511A35N-L005R-S04
Continuous torque ≥	Nm	15
Peak torque ≥	Nm	45
Continuous speed ≥	rpm	90
Peak speed ≥	rpm	300
Number of poles	PCS	10
Continuous current	Arms	4.5
Thrust constant≥	Nm/Arms	3.33
Peak current	Arms	15
Resistance	ohm	6.5
Inductance	mh	65
Absolute accuracy	arcsec	±30
Repeat accuracy	arcsec	±2
Axial force	N	1200
Radial force	N	400
Coil maximum temperature	°C	155
Quality	kg	4.5
Moment of inertia of mover	kg × m²	0.035

---
