Details

---

Model : SDM135-008



---

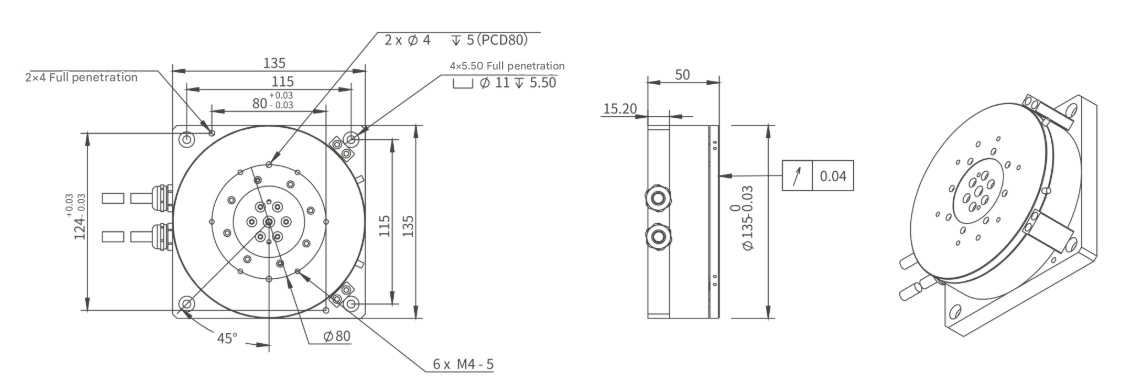

Dimension :






---

Specifications :


Model parameters	Unit	STP-SDM110-01011A35N-L005R-S04
Continuous torque ≥	Nm	2.5
Peak torque ≥	Nm	7.5
Continuous speed ≥	rpm	120
Peak speed ≥	rpm	240
Number of poles	PCS	10
Continuous current	Arms	3
Thrust constant≥	Nm/Arms	0.81
Peak current	Arms	9
Resistance	ohm	3.8
Inductance	mh	32
Absolute accuracy	arcsec	±20
Repeat accuracy	arcsec	±2
Coil maximum temperature	°C	155
Quality	kg	2.5
Moment of inertia of mover	kg × m²	0.0082

---
