Torque Motor SDM80-002 (Non-hollow)

Torque Motor SDM80-002 (Non-hollow)

Category: SERVOTOP

Specifications
Details




Model :
SDM80-002 (Non-hollow)

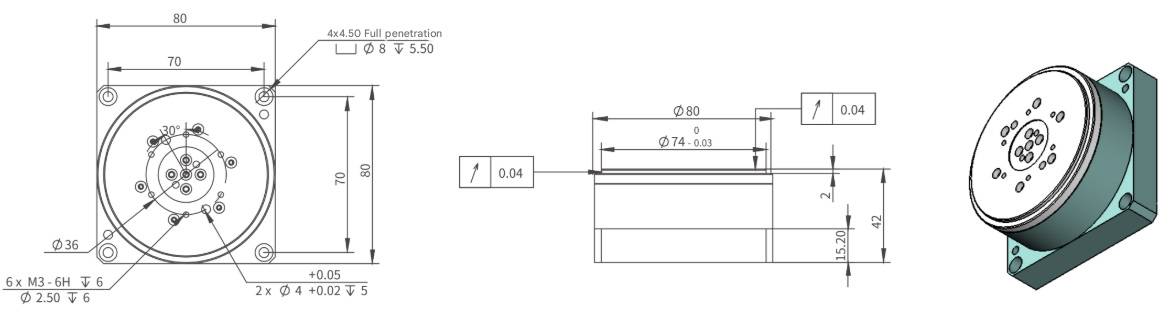

Dimension :





Specifications :


Model parameters Unit STP-SDM80-002104F20N-L005T-S05
Continuous torque ≥ Nm 0.84
Peak torque ≥ Nm 2.39
Continuous speed ≥ rpm 100
Peak speed ≥ rpm 300
Number of poles PCS 10
Continuous current Arms 1.27
Thrust constant≥ Nm/Arms 0.52
Peak current Arms 3.81
Resistance ohm 10.3
Inductance mh 3.5
Absolute accuracy arcsec ±30
Repeat accuracy arcsec ±3
Axial force N 300
Radial force N 120
Coil maximum temperature °C 155
Quality kg 0.9
Moment of inertia of mover kg × 0.00213
