Details

---

Model : SDM60-002



---

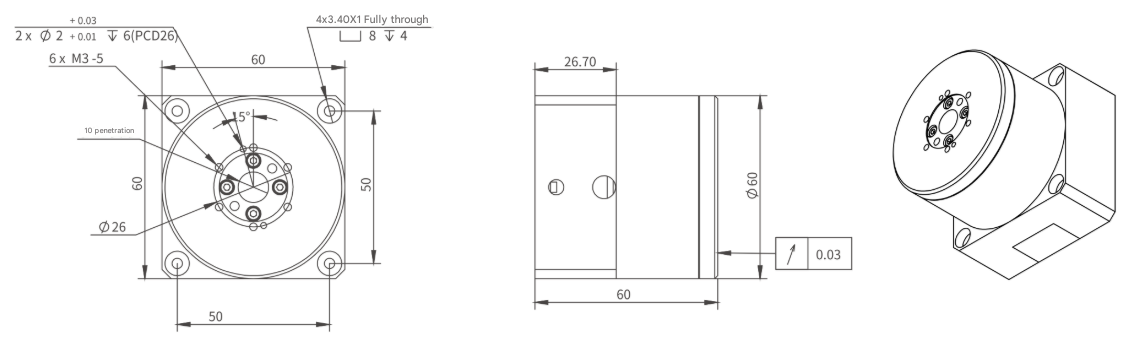

Dimension :




---

Specifications :


Model parameters	Unit	STP-SDM60-002102F24N-L005T-S05
Continuous torque ≥	Nm	0.84
Peak torque ≥	Nm	2.52
Continuous speed ≥	rpm	150
Peak speed ≥	rpm	300
Number of poles	PCS	10
Continuous current	Arms	1.1
Thrust constant≥	Nm/Arms	0.76
Peak current	Arms	3.5
Resistance	ohm	9.6
Inductance	mh	28
Absolute accuracy	arcsec	±30
Repeat accuracy	arcsec	±2
Axial force	N	95
Radial force	N	170
Coil maximum temperature	°C	155
Quality	kg	0.85
Moment of inertia of mover	kg × m²	0.0005



---
