Details

---

Model : SDM40-001



---

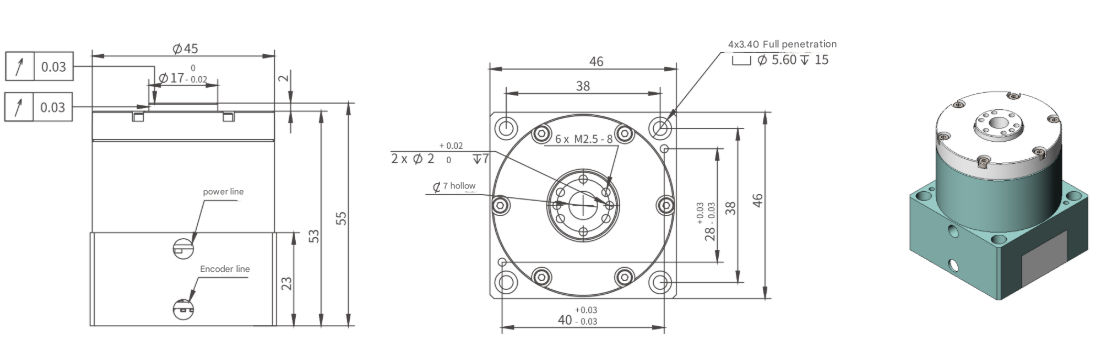

Dimension :




---

Specifications :


Model parameters	Unit	STP-SDM40-00112F24N-L005T-S05
Continuous torque ≥	Nm	0.27
Peak torque ≥	Nm	0.84
Continuous speed ≥	rpm	100
Peak speed ≥	rpm	300
Number of poles	PCS	10
continuous current	Arms	1.1
Thrust constant≥	Nm/Arms	0.245
Peak current	Arms	3.8
Resistance	ohm	9.6
Inductance	mh	13
Absolute accuracy	arcsec	±30
Repeat accuracy	arcsec	±2
Axial force	N	75
Radial force	N	150
Coil maximum temperature	°C	155
Quality	kg	0.2
Moment of inertia of mover	kg × m²	0.003

---
