Details

---

Model : SDW210-174



---

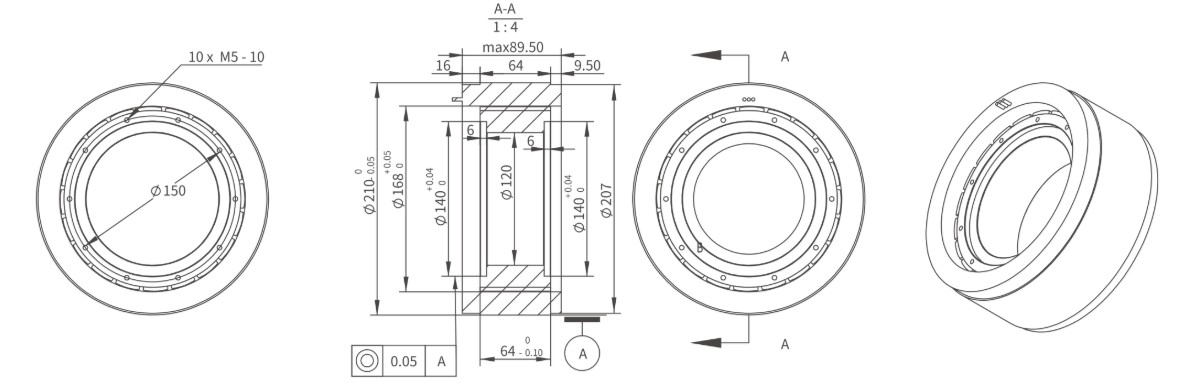

Dimension :




---

Specifications :



Model parameters	Unit	STP-SDW210-17411A00N-L005X-S00
Continuous torque ≥	Nm	58
Peak torque ≥	Nm	150
Continuous speed ≥	rpm	200
Peak speed ≥	rpm	270
Number of poles	PCS	20
continuous current	Arms	6
Thrust constant≥	Nm/Arms	9.7
Peak current	Arms	20
Resistance	ohm	3.75
Inductance	mh	68
Coil maximum temperature	°C	155
Quality	kg	8.6
Moment of inertia of mover	kg × m²	0.065



---
