Details

---

Model : SDW160-84



---

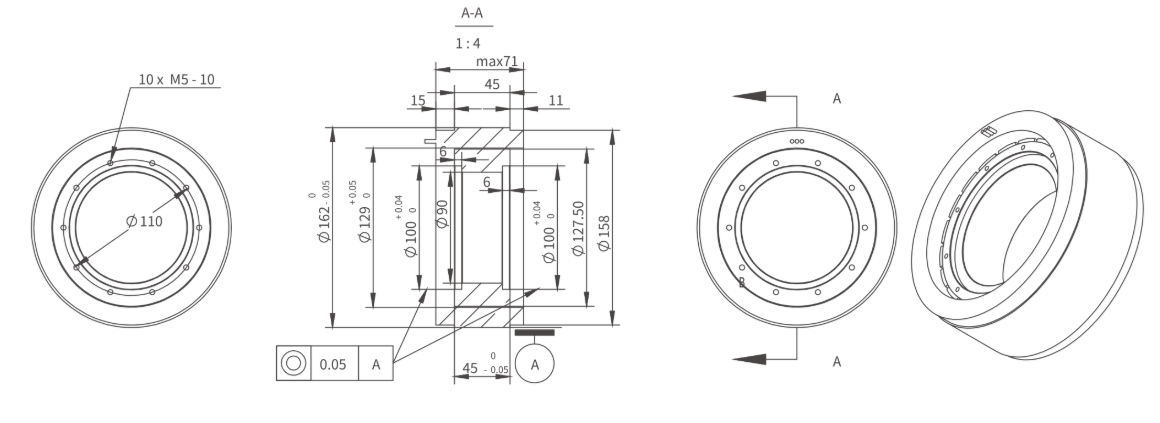

Dimension :




---

Specifications :


Model parameters	Unit	STP-SDW160-8411A00N-L005X-S00
Continuous torque ≥	Nm	28
Peak torque ≥	Nm	84
Continuous speed ≥	rpm	230
Peak speed ≥	rpm	310
Number of poles	PCS	40
continuous current	Arms	4.5
Thrust constant≥	Nm/Arms	6.2
Peak current	Arms	15
Resistance	ohm	5.75
Inductance	mh	57
Coil maximum temperature	°C	155
Quality	kg	4.6
Moment of inertia of mover	kg × m²	0.025



---
