Details
Model :
- 5IK90RGU-AF, 5iK90RA-AF
- 5IK90RGU-EF, 5IK90RA-EF
- 5IK90RGU-CF, 5iK90RA-CF
- 5IK90RGU-HF, 5IK90RA-HF
Diagram :

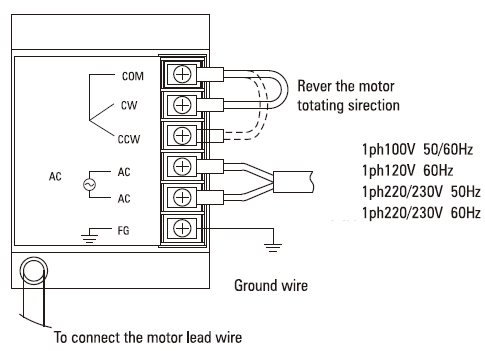

- US Type
.png)

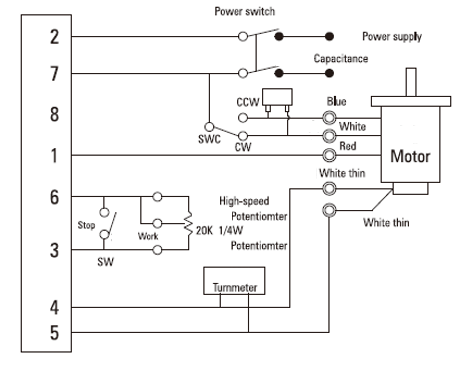

- SS Type
.png)
Dimensions :

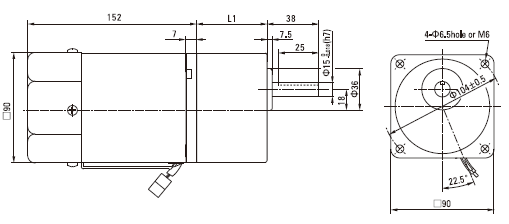

- Lead wiring type
.png)

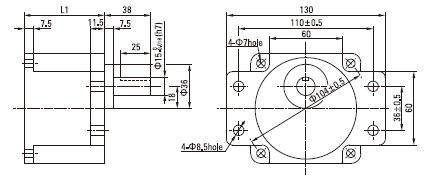

- Flange mounting reducer
.png)
- Keyway Accessory
.png)

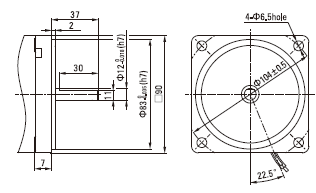

- Shaft section of round shaft type
.png)

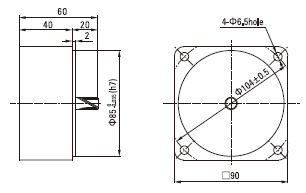

- Gearhead
.png)
Specifications :
Lead Wire Type | Maximum Output power |
Voltage | Frequency | Speed Control range |
Allowance Torque |
Starting torque |
Current | Capacitor | |||
Pinion Shaft | Round Shaft | W | V | Hz | r/min | 1200r/min mN.m |
90r/min mN.m |
mN.m | A | µF | |
Model | 5IK90RGU-AF | 5iK90RA-AF | 90 | 1ph 100 | 50 | 90~1350 | 710 | 230 | 405 | 1.55 | 25 |
60 | 90~1650 | 260 | 1.85 | ||||||||
5IK90RGU-EF | 5IK90RA-EF | 90 | 1ph 110 | 60 | 90~1650 | 710 | 260 | 410 | 1.4 | 20 | |
1ph 120 | 1.45 | ||||||||||
5IK90RGU-CF | 5iK90RA-CF | 90 | 1ph 220 | 50 | 90~1350 | 710 | 230 | 410 | 0.72 | 5 | |
1ph 230 | 0.7 | ||||||||||
5IK90RGU-HF | 5IK90RA-HF | 90 | 1ph 220 | 60 | 90~1650 | 710 | 260 | 410 | 0.71 | 5 | |
1ph 230 | 0.75 |
