Details

---

Model :

• 3IK15RGN-A,            31K15RA-A

• 3 K15RGN-E,            3 K15RA-E

• 3 K15RGN-C,           3 K15RA-C

• 3IK15RGN-H,           3IK15RA-H



---

Diagram :


• US Type



• SS Type




---

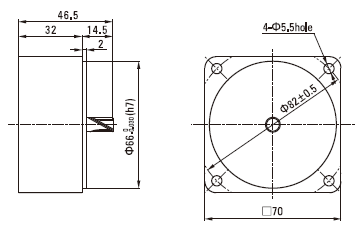

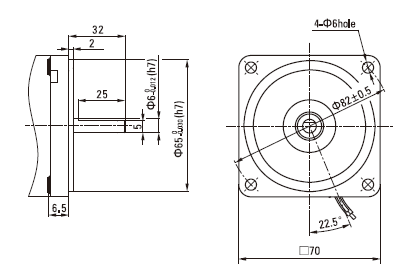

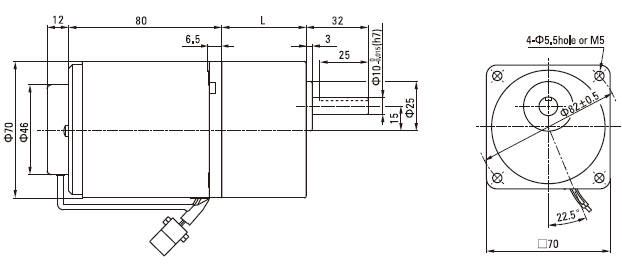

Dimensions :



• Lead wiring type

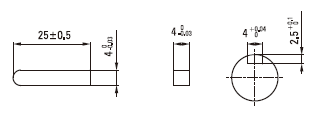

• Keyway (Accessory of Gearhead)





• Shaft section of round sghaft type



• Gearhead


---

Specifications :


	Lead Wire Type		Output power	Voltage	Frequency	Speed ​​Control range	Allowance Torque		Starting torque	current	Capacitor
	Pinion Shaft	Round Shaft	W	V	Hz	r/min	1200r/min mN.m	90r/min mN.m	mN.m	A	µF
Model	3IK15RGN-A	31K15RA-A	15	1ph 100	50	90~1350	120	35	55	0.35	6.0
					60	90~1650				0.33
	3 K15RGN-E	3 K15RA-E	15	1ph 110	60	90~1650	125	35	55	0.3	5
				1ph 120						0.32
	3 K15RGN-C	3 K15RA-C	15	1ph 220	50	90~1350	120	35	54	0.18	1.2
				1ph 230						0.2
	3IK15RGN-H	3IK15RA-H	15	1ph 220	60	90~1650	85	35	52	0.16	1.2
				1ph 230			105		55	0.15



---
