Air Nipper Cutter (NL Series)

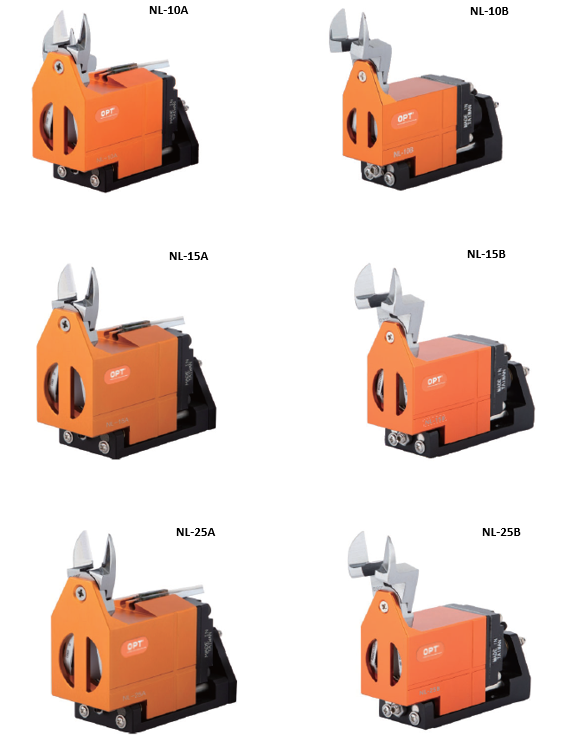

Model :
- NL Series
.png)

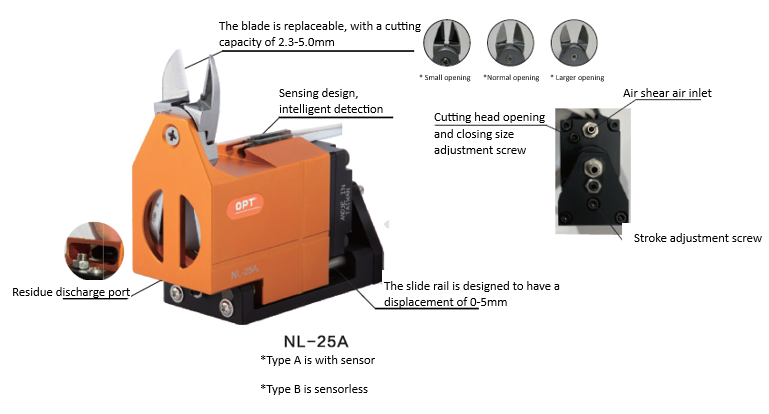

Features Diagram :
.png)

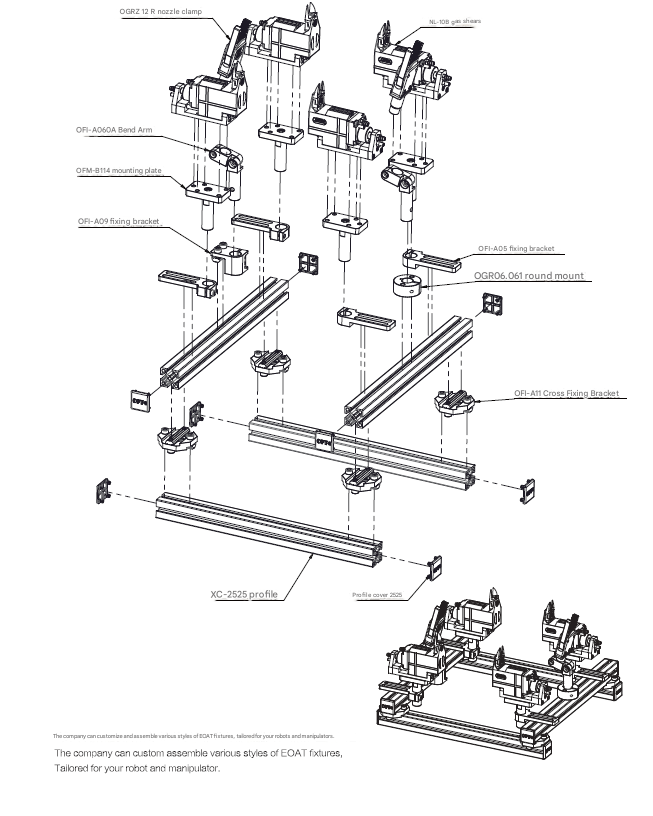

Assembly Drawing :
.png){kind=spacer}

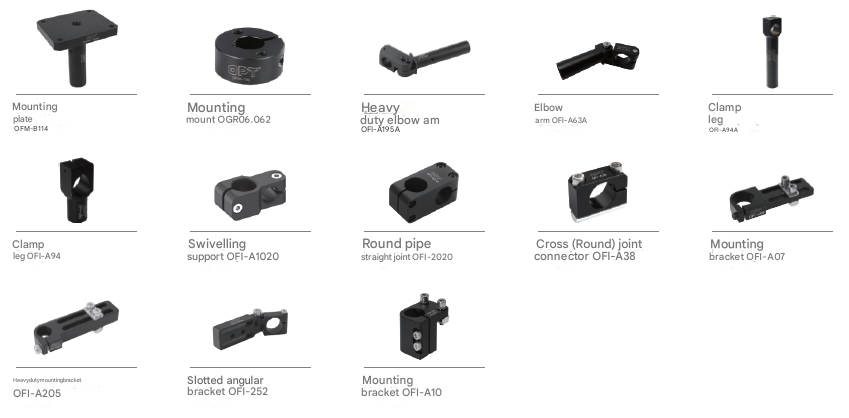

Accessories :
.png){kind=spacer}

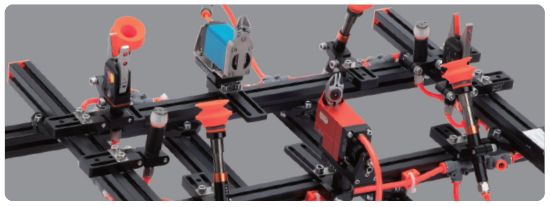

Applications :
.png)
Specifications :
| Model | Air inlet (mm) | Air wastage cycle | Operation pressure (kgf/cm²) | Weight Weight(g) |
| NL-10A | 4 | 68 | 4-5 | 234 |
| NL-10AR | 4 | 68 | 4-5 | 234 |
| NL-10B | 4 | 68 | 4-5 | 228 |
| NL-10BR | 4 | 68 | 4-6 | 229 |
| NL-15A | 6 | 136 | 4-5 | 302 |
| NL-15AR | 6 | 136 | 4-5 | 302 |
| NL-15B | 6 | 136 | 4-5 | 296 |
| NL-15BR | 6 | 136 | 4-5 | 296 |
| NL-25A | 6 | 184 | 4-5 | 432 |
| NL-25AR | 6 | 184 | 4-5 | 432 |
| NL-25B | 6 | 184 | 4-5 | 426 |
| NL-25BR | 6 | 184 | 4-5 | 426 |
Adapter Blade :

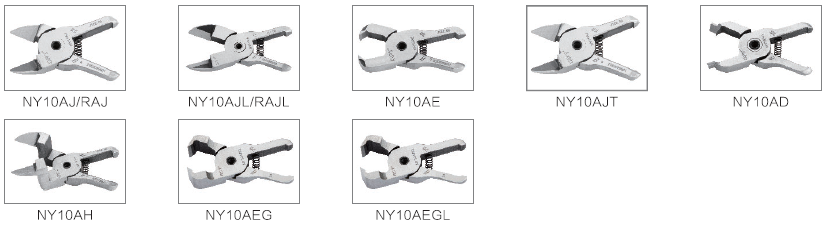

- NL-10A / NL-10AR / NL-10B / NL-10BR
.png)

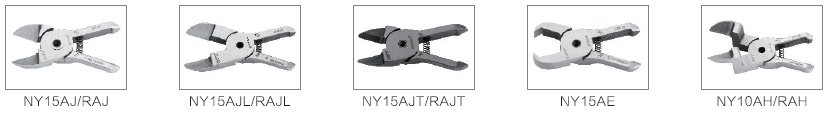

- NL-15A / NL-15AR / NL-15B / NL-15BR
.png)

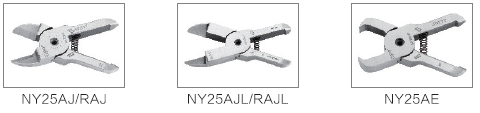

- NL-25A / NL-25AR / NL-25B / NL-25BR
.png)
