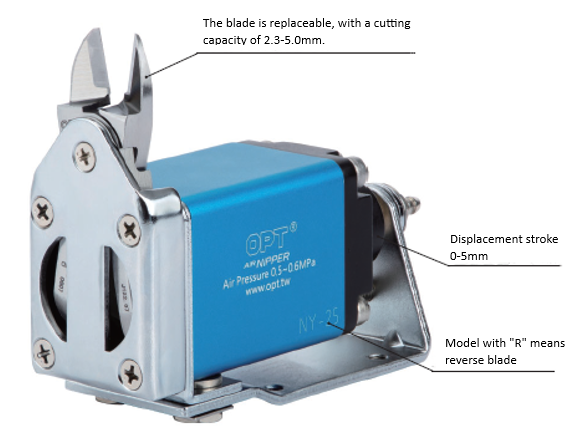

Air Nipper Cutter (NY Series)

Model :

Model	Air inlet (mm)	Gas consumption (per time/cm³) Air Air wastage cycle	Operation pressure (kgf/cm²)	Weight (g)
NY-15	6	136	4-5	319
NY-15R	6	136	4-5	319

Model	Air inlet	Gas consumption	Operation pressure	Weight (g)

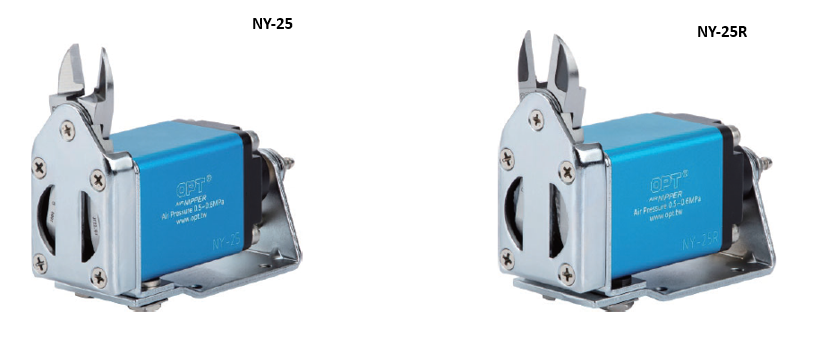

NY-25	6	184	4-5	508
NY-25R	6	184	4-5	508



---

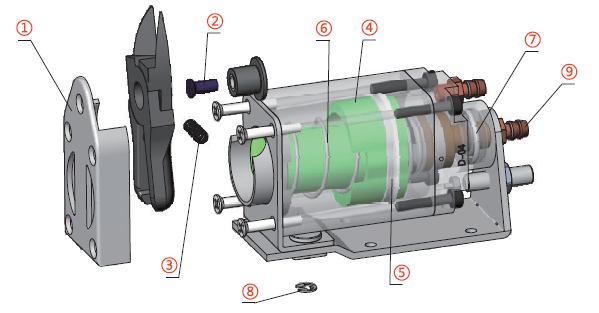

Features :

1.	Cutter head bracket
2.	Cutter head screw
3.	Blade spring
4.	Piston
5.	Piston Seal ring
6.	Piston spring
7.	Pull out the seal
8.	Base circlip
9.	Connector



---

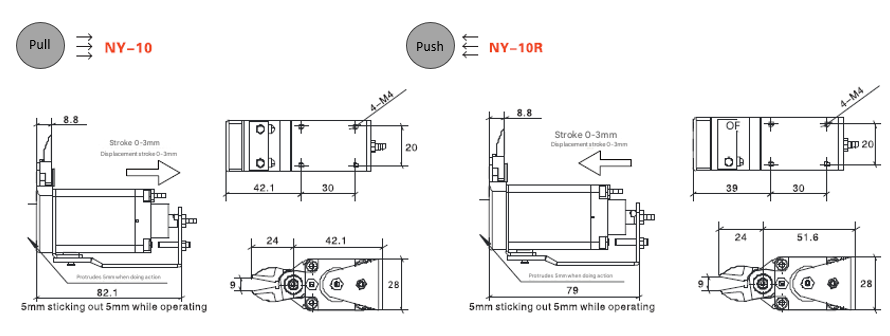

Dimensions :




Dimension of Installation :









---

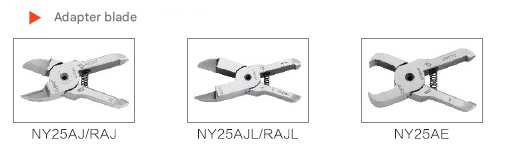

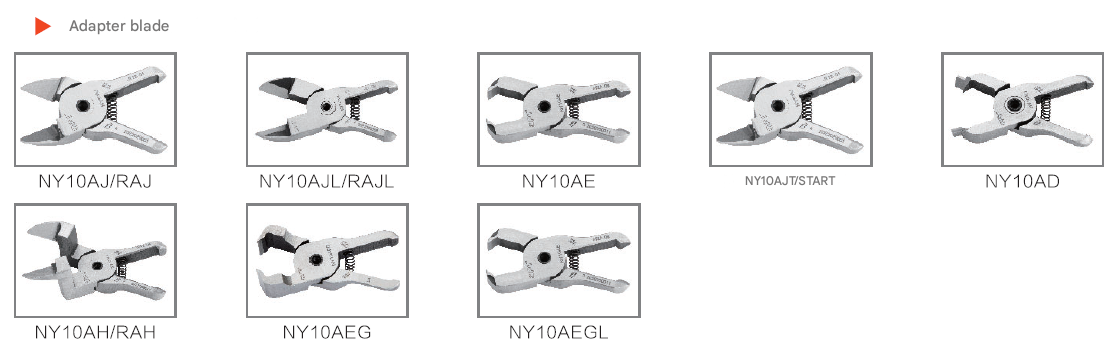

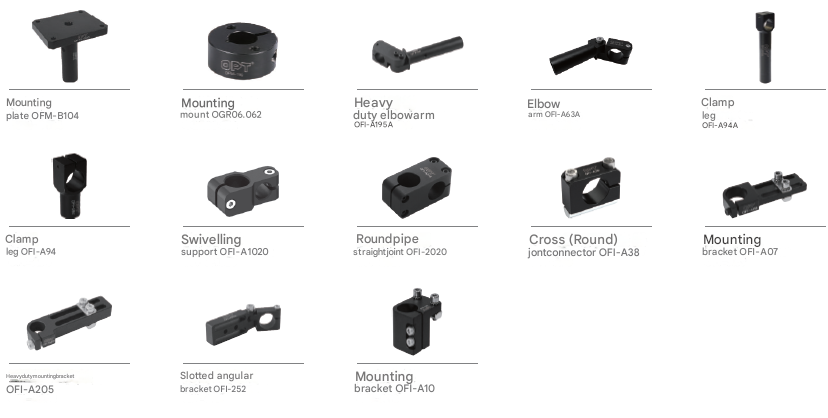

Accessorries :





---
