Double Side Heat Shrinkable Tube Heater WL-50F

Model : WL-50F

Features :

WL50F heat shrinkable tube heating machine is an automatic heat shrinkable tube heating equipment.
Design for mass production.
It can realize multi-point heat shrinkage of one product, especially suitable for large diameter, thick-walled taped heat shrinkable sleeve, super-long heat shrinkable sleeve, precise heating, no damage line.
Simple operation, can save 10 kinds of product heating procedures.

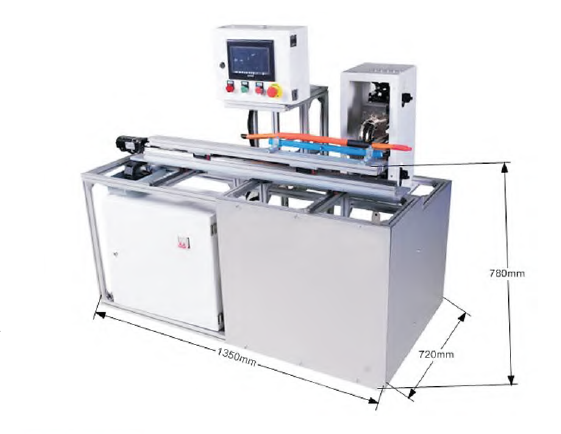

Dimension :

Specifications :

Model	WL-50F	Parameter
Size	Whole machine size (LWH)	1350×720×1300mm
	Maximum wire harness diameter	<50mm
	Maximum heating length	<500mm
	Cooling zone	200mm
Heater	Material	Stainless steel and aluminum alloy
Heater	Heat shrinkable speed	0~100mm/s
Energy demand	Power demand	220V Two phase three line 50HZ
	Air source demand	3.5 KPa~6KPa
	Power	4.5KW
