DDF Indoor Waterproof Network Server Rack BLFS-8147

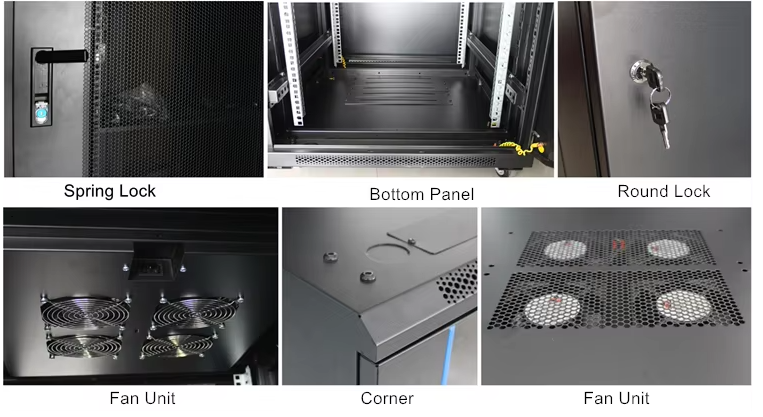

Features :
.png)

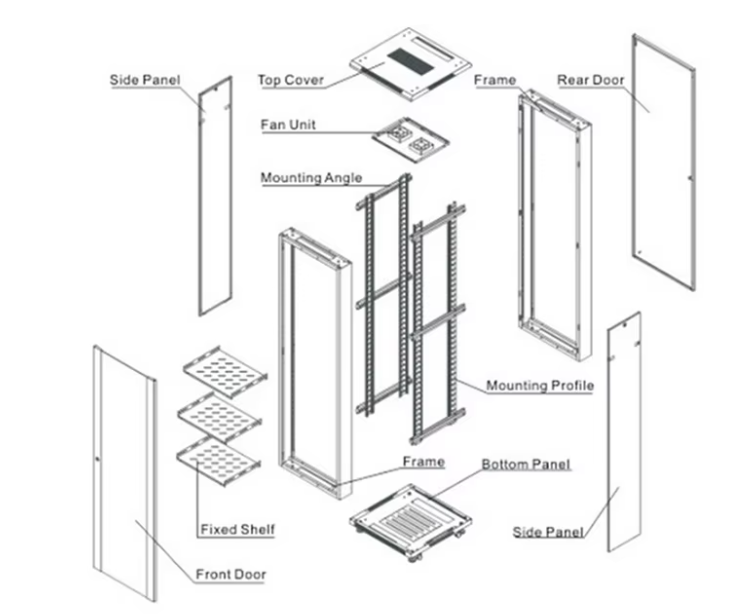

Layout Design :
.png)
Advantages :
- The front, rear doors, and side panels are easy to install and remove.
- Adjustable feet and heavy-duty castors are available simultaneously, offering convenience for movement or secure placement.
- 19-inch standard installation meets international standards, ensuring compatibility with versatile parts and door interchangeability.
- A variety of optional accessories are available, enabling convenient and fast installation, along with an efficient cabinet baying kit.
- Customizable dimensions and structures are offered to meet diverse customer requirements.
- The assembled frame structure is designed for assembly and disassembly during shipment, maximizing savings on shipping costs.
Specifications :
| Part No. | BLFS-8147 | |
| Capacity | 47U | |
| Dimension | W*D*H 800*1000*2277 | |
| Front Door | Glass door with spring lock | |
| Rear Door | Steel door with round lock | |
| Side Door | Removable steel panel, round lock is optional | |
| Bottom Panel | Ventilation and rat proof, several lockable cable entry | |
| Top Panel | Several lockable cable entry | |
| Main Material | SPCC cold rolled steel | |
| Thickness | Mounting profile | 2.0 mm |
| Mounting angle | 1.5 mm | |
| Others | 1.2 mm | |
| Surface Finish | Powder coated | |
| Degree of Protection | IP20 / Customized | |
| Static Loading Capacity | 800kg | |
| Color | Black RAL9004 & Grey RAL7035 | |
