Floor Standing Glass Door DDF Network Cabinet BLFS-6642GSA
Features :
- Toughened glass front door with spring lock, steel rear door with small round lock.
- 19’’ standard installation, achieve the international standard for the installation of the versatility of the parts, door interchangeability.
- Removable side panels, easy to install and maintain.
- Assembled frame structure, assembled and disassembled shipment, maximize save shipping costs.
- Various optional accessories, convenient and fast installation, efficient cabinet baying kit.
- Adjustable feet and heavy duty castors are available at the same time, convenient to move or fix.
- Several lockable cable entry on top cover and bottom panel. Front rear door and side panel easy to install and remove, bottom ventilation and rat proof.
- Various optional dimension and structure according to customer requirements.
Adantages :
- Perforated front door with spring lock, over 71% ventiation rate.
- Turning angle of front door is over 180 degrees.
- Fixed shelf with pre-punched holes to increase heat dissipation.
- Zinc-plated/ Black mounting profiles with U mark
- Knock off holes for entering cables from bottom panel.
- Ground rail

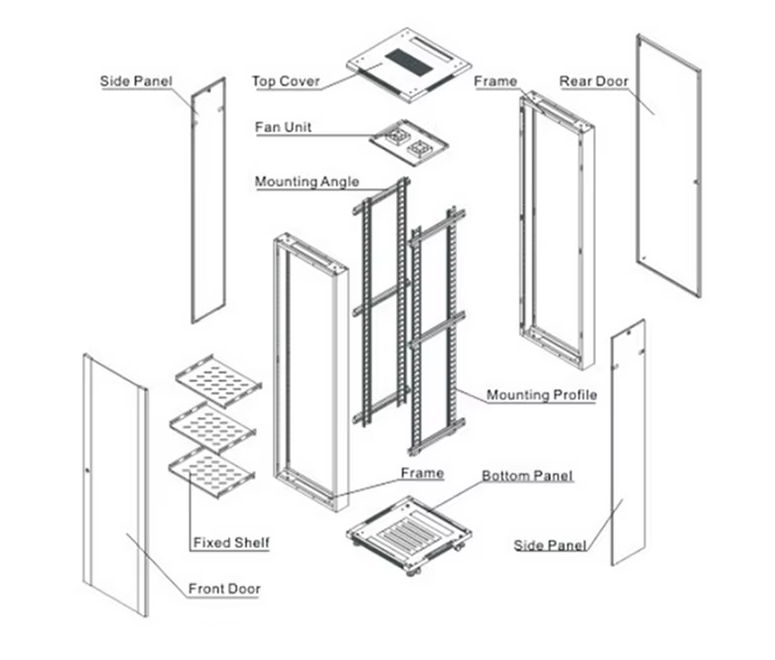

Layout Design :

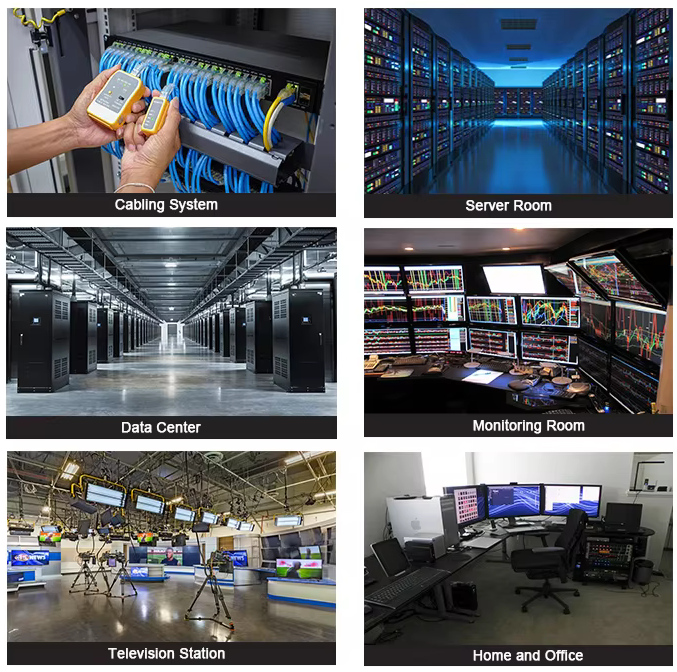

Applications :
Specifications :
|
Cabinet standard
|
Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491 |
| Size | 600x600mm |
| Material | SPCC cold rolled steel |
| Model number | BLFS-6642GSA |
| Product Name | 42U Floor Standing DDF Network Cabinet |
| Description | 19 Inch Data Center Server Rack |
| Application | Standard 19 Inch Data Center Network Rack Cabinet |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 2055 mm |
| Capacity | 42 U |
| Degree of Protection | IP20 |
| Surface Finish | Powder Coated |
| Color | Black RAL9004 / Grey RAL7035 |
Accessories :
